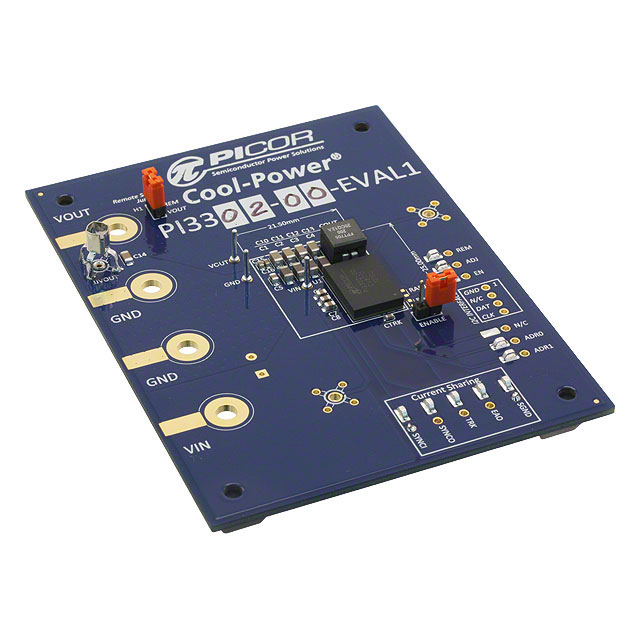

PI3302-00-EVAL1
ActiveVicor Corporation
PICOR EVAL BD PI3302-00
Deep-Dive with AI
Search across all available documentation for this part.
PI3302-00-EVAL1
ActiveVicor Corporation
PICOR EVAL BD PI3302-00
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PI3302-00-EVAL1 |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 10 A |
| Frequency - Switching | 1 MHz |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Utilized IC / Part | PI3302-00 |
| Voltage - Input [Max] | 36 V |
| Voltage - Input [Min] | 8 V |
| Voltage - Output | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 58.69 | |
| 25 | $ 42.54 | |||
| 100 | $ 40.00 | |||
Description
General part information
PI3302 Series
PI3302-00 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
