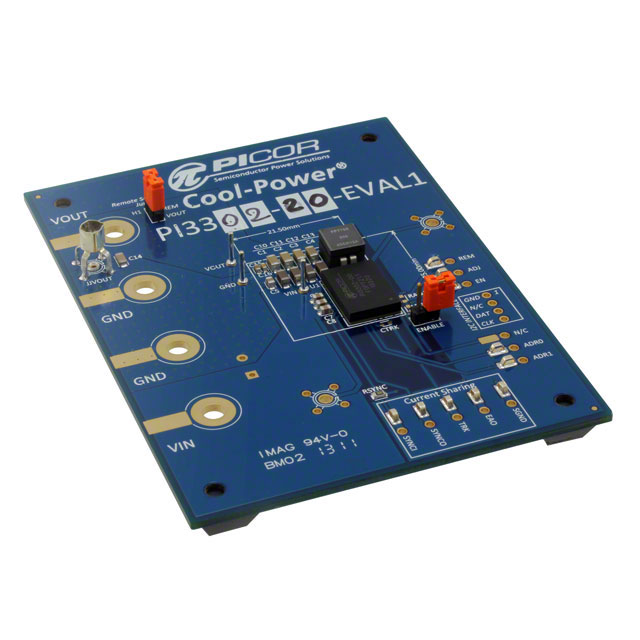

PI3302-20-EVAL1
ObsoleteVicor Corporation
EVAL BOARD FOR PI330220
Deep-Dive with AI
Search across all available documentation for this part.
PI3302-20-EVAL1
ObsoleteVicor Corporation
EVAL BOARD FOR PI330220
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PI3302-20-EVAL1 |
|---|---|
| Contents | Board(s) |
| Current - Output | 10 A |
| Frequency - Switching | 1 MHz |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | 1 Non-Isolated Output |
| Regulator Topology | Buck |
| Utilized IC / Part | PI3302-20 |
| Voltage - Input [Max] | 36 V |
| Voltage - Input [Min] | 8 V |
| Voltage - Output | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PI3302 Series
PI3302-20 - 1 Non-Isolated Output DC/DC, Step Down Evaluation Board
