NL17SZ32XV5T2G-L22087

Obsolete

ON Semiconductor

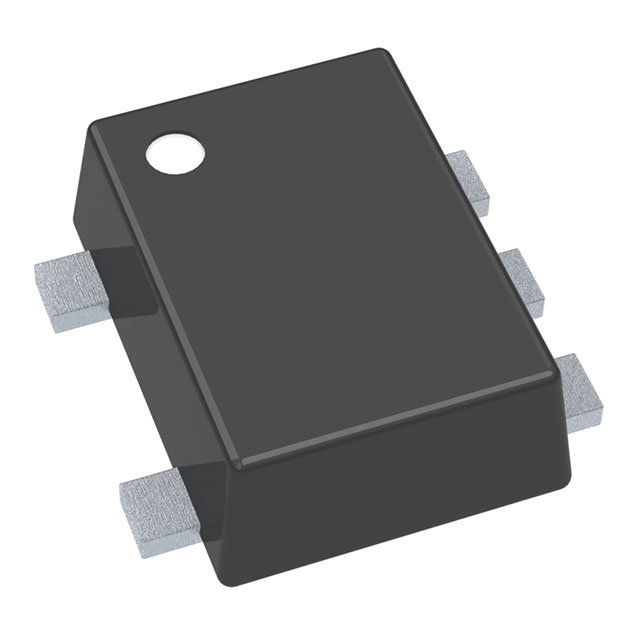

IC GATE OR 1CH 2-INP SOT553

Search across all available documentation for this part.

Obsolete

ON Semiconductor

IC GATE OR 1CH 2-INP SOT553

Technical Specifications

Parameters and characteristics for this part

Specification	NL17SZ32XV5T2G-L22087

Current - Output High, Low [x]	32 mA
Current - Output High, Low [y]	32 mA
Current - Quiescent (Max) [Max]	1 çA
Logic Type	OR Gate
Max Propagation Delay @ V, Max CL	4.5 ns
Mounting Type	Surface Mount
Number of Circuits	1
Number of Inputs	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	SOT-553
Supplier Device Package	SOT-553
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	1.65 V

Part	Logic Type	Current - Output High, Low [y]	Current - Output High, Low [x]	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Number of Circuits	Max Propagation Delay @ V, Max CL	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Inputs	Package / Case	Current - Quiescent (Max) [Max]	Supplier Device Package	Supplier Device Package	Supplier Device Package	Grade	Qualification
ON Semiconductor NL17SZ32P5T5G-L22088	OR Gate	32 mA	32 mA	5.5 V	1.65 V	SOT-953	1	4.5 ns	-55 °C	125 °C	Surface Mount	2	SOT-953	1 çA
ON Semiconductor NLJ17SZ32DFT2G
ON Semiconductor NL17SZ32DFT2	OR Gate	32 mA	32 mA	5.5 V	1.65 V		1	4.5 ns	-55 °C	125 °C	Surface Mount	2	5-TSSOP SC-70-5 SOT-353	1 çA	SC-88A	SOT-353	SC-70-5
ON Semiconductor NLV17SZ32DFT2G	OR Gate	32 mA	32 mA	5.5 V	1.65 V		1	4.5 ns	-55 °C	125 °C	Surface Mount	2	5-TSSOP SC-70-5 SOT-353	1 çA	SC-88A	SOT-353	SC-70-5	Automotive	AEC-Q100
ON Semiconductor NL17SZ32EDFT2G	OR Gate	32 mA	32 mA	5.5 V	1.65 V		1	4.5 ns	-55 °C	125 °C	Surface Mount	2	5-TSSOP SC-70-5 SOT-353	1 çA	SC-88A	SOT-353	SC-70-5
ON Semiconductor NL17SZ32XV5T2	OR Gate	32 mA	32 mA	5.5 V	1.65 V	SOT-553	1	4.5 ns	-55 °C	125 °C	Surface Mount	2	SOT-553	1 çA
ON Semiconductor NL17SZ32DFT2GH
ON Semiconductor NL17SZ32XV5T2G-L22087	OR Gate	32 mA	32 mA	5.5 V	1.65 V	SOT-553	1	4.5 ns	-55 °C	125 °C	Surface Mount	2	SOT-553	1 çA
