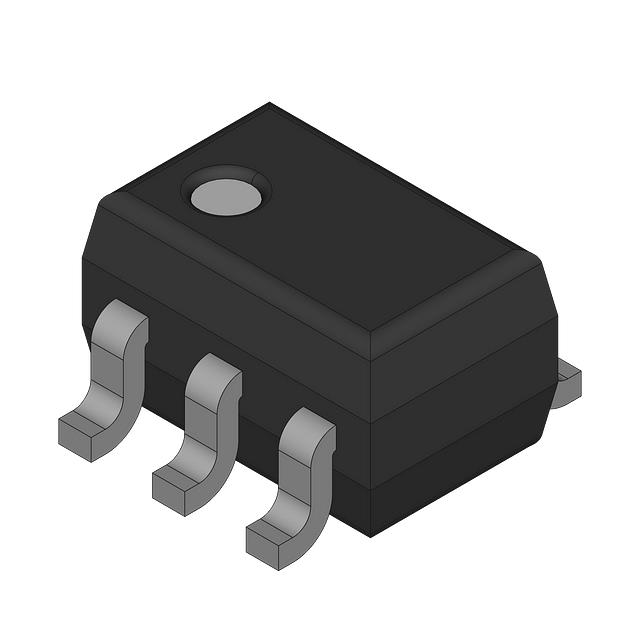

NL17SZ32DFT2GH

Active

ON Semiconductor

IC GATE OR SNGL 2-INP

Search across all available documentation for this part.

Active

ON Semiconductor

IC GATE OR SNGL 2-INP

Technical Specifications

Parameters and characteristics for this part

Specification	NL17SZ32DFT2GH

null

Part	Logic Type	Current - Output High, Low [y]	Current - Output High, Low [x]	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Number of Circuits	Max Propagation Delay @ V, Max CL	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Inputs	Package / Case	Current - Quiescent (Max) [Max]	Supplier Device Package	Supplier Device Package	Supplier Device Package	Grade	Qualification
ON Semiconductor NL17SZ32P5T5G-L22088	OR Gate	32 mA	32 mA	5.5 V	1.65 V	SOT-953	1	4.5 ns	-55 °C	125 °C	Surface Mount	2	SOT-953	1 çA
ON Semiconductor NLJ17SZ32DFT2G
ON Semiconductor NL17SZ32DFT2	OR Gate	32 mA	32 mA	5.5 V	1.65 V		1	4.5 ns	-55 °C	125 °C	Surface Mount	2	5-TSSOP SC-70-5 SOT-353	1 çA	SC-88A	SOT-353	SC-70-5
ON Semiconductor NLV17SZ32DFT2G	OR Gate	32 mA	32 mA	5.5 V	1.65 V		1	4.5 ns	-55 °C	125 °C	Surface Mount	2	5-TSSOP SC-70-5 SOT-353	1 çA	SC-88A	SOT-353	SC-70-5	Automotive	AEC-Q100
ON Semiconductor NL17SZ32EDFT2G	OR Gate	32 mA	32 mA	5.5 V	1.65 V		1	4.5 ns	-55 °C	125 °C	Surface Mount	2	5-TSSOP SC-70-5 SOT-353	1 çA	SC-88A	SOT-353	SC-70-5
ON Semiconductor NL17SZ32XV5T2	OR Gate	32 mA	32 mA	5.5 V	1.65 V	SOT-553	1	4.5 ns	-55 °C	125 °C	Surface Mount	2	SOT-553	1 çA
ON Semiconductor NL17SZ32DFT2GH
ON Semiconductor NL17SZ32XV5T2G-L22087	OR Gate	32 mA	32 mA	5.5 V	1.65 V	SOT-553	1	4.5 ns	-55 °C	125 °C	Surface Mount	2	SOT-553	1 çA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2219	$ 0.14

General part information

IC Channel
