0191150012

Active

Molex

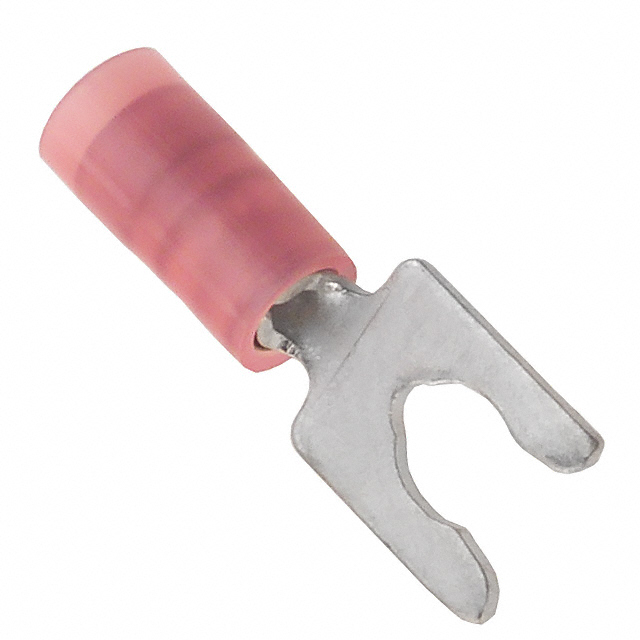

CONN SPADE TERM 18-22AWG #8 RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0191150012

Active

Molex

CONN SPADE TERM 18-22AWG #8 RED

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0191150012

Color	Red
Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Insulated
Insulation Diameter	3.65 mm
Insulation Diameter	0.144 in
Length - Overall [x]	0.88 in
Length - Overall [x]	22.35 mm
Length - Ring Center to Termination [x]	6.63 mm
Length - Ring Center to Termination [x]	0.261 in
Material - Insulation	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Snap, Spring
Termination	Crimp
Tongue Inside Opening [x]	3.53 mm
Tongue Inside Opening [x]	0.139 in
Width - Outer Edges	7.87 mm
Width - Outer Edges [y]	0.31 in
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

019115 Series

Part	Terminal Type	Material - Insulation	Length - Overall [x]	Length - Overall [x]	Termination	Insulation	Length - Ring Center to Termination	Length - Ring Center to Termination	Width - Outer Edges [y]	Width - Outer Edges [y]	Contact Finish	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Stud/Tab Size	Color	Length - Termination	Length - Termination	Contact Material	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Insulation Diameter	Insulation Diameter	Stud/Tab Size	Length - Overall	Length - Overall	Width - Outer Edges	Length - Overall
Molex 0191150042	Snap Spring	Nylon Polyamide (PA)	0.97 in	24.64 mm	Crimp	Insulated	0.23 in	5.84 mm	0.25 "	6.35 mm	Electro-Tin	2.9 mm	0.114 in	12 AWG	10 AWG	Free Hanging (In-Line)	6 Stud	Yellow	0.56 "	14.22 mm	Copper	5.72 mm	0.225 "
Molex 0191150003	Snap Spring	Nylon Polyamide (PA)	0.88 in	22.35 mm	Crimp	Insulated			0.29 in	7.37 mm	Electro-Tin	3.48 mm	0.137 in	22 AWG	17.5 AWG	Free Hanging (In-Line)		Red			Copper			0.235 in	5.97 mm	3.65 mm	0.144 in	8 Stud
Molex 0191150025	Snap Spring	Nylon Polyamide (PA)			Crimp	Insulated	0.23 in	5.84 mm	0.25 "	6.35 mm	Electro-Tin	2.9 mm	0.114 in			Free Hanging (In-Line)	6 Stud	Blue	0.415 in	10.54 mm	Copper								20.96 mm	0.825 in
Molex 0191150030	Snap Spring	Nylon Polyamide (PA)	0.886 in	22.5 mm	Crimp	Insulated			0.31 in		Electro-Tin	3.53 mm	0.139 in			Free Hanging (In-Line)		Blue	0.415 in	10.54 mm	Copper			0.261 in	6.63 mm			8 Stud			7.87 mm
Molex 0191150047	Snap Spring	Nylon Polyamide (PA)			Crimp	Insulated			0.31 in		Electro-Tin	3.53 mm	0.139 in	12 AWG	10 AWG	Free Hanging (In-Line)		Yellow	0.56 "	14.22 mm	Copper	5.72 mm	0.225 "	0.261 in	6.63 mm			8 Stud	1.031 in		7.87 mm	26.19 mm
Molex 0191150048	Snap Spring	Nylon Polyamide (PA)	1.079 in	27.41 mm	Crimp	Insulated			0.33 in	8.38 mm	Electro-Tin	3.96 mm	0.156 in	12 AWG	10 AWG	Free Hanging (In-Line)	10 Stud	Yellow	0.56 "	14.22 mm	Copper	5.72 mm	0.225 "	0.261 in	6.63 mm
Molex 0191150010	Snap Spring	Nylon Polyamide (PA)	0.81 in	20.57 mm	Crimp	Insulated	0.23 in	5.84 mm	0.255 in	6.48 mm	Tin	2.9 mm	0.114 in	22 AWG	17.5 AWG	Free Hanging (In-Line)	6 Stud	Red	0.411 in	10.44 mm	Copper	3.56 mm	0.14 in
Molex 0191150091	Snap Spring	Nylon Polyamide (PA)	0.97 in	24.64 mm	Crimp	Insulated	0.23 in	5.84 mm	0.25 "	6.35 mm	Electro-Tin	2.9 mm	0.114 in	12 AWG	10 AWG	Free Hanging (In-Line)	6 Stud	Yellow	0.56 "	14.22 mm	Copper	5.72 mm	0.225 "
Molex 0191150012	Snap Spring	Nylon Polyamide (PA)	0.88 in	22.35 mm	Crimp	Insulated			0.31 in		Electro-Tin	3.53 mm	0.139 in	22 AWG	17.5 AWG	Free Hanging (In-Line)		Red			Copper			0.261 in	6.63 mm	3.65 mm	0.144 in	8 Stud			7.87 mm
Molex 0191150008	Snap Spring	Nylon Polyamide (PA)	0.811 in	20.6 mm	Crimp	Insulated	0.23 in	5.84 mm	0.255 in	6.48 mm	Electro-Tin	2.67 mm	0.105 in	22 AWG	17.5 AWG	Free Hanging (In-Line)		Red	0.411 in	10.44 mm	Copper	3.56 mm	0.14 in					5 Stud

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.50
		10	$ 0.42
		100	$ 0.33
		1000	$ 0.26
		5000	$ 0.23
		10000	$ 0.21

Description

General part information

019115 Series

Red 8 Stud Spade Terminal Connector Crimp 18-22 AWG
