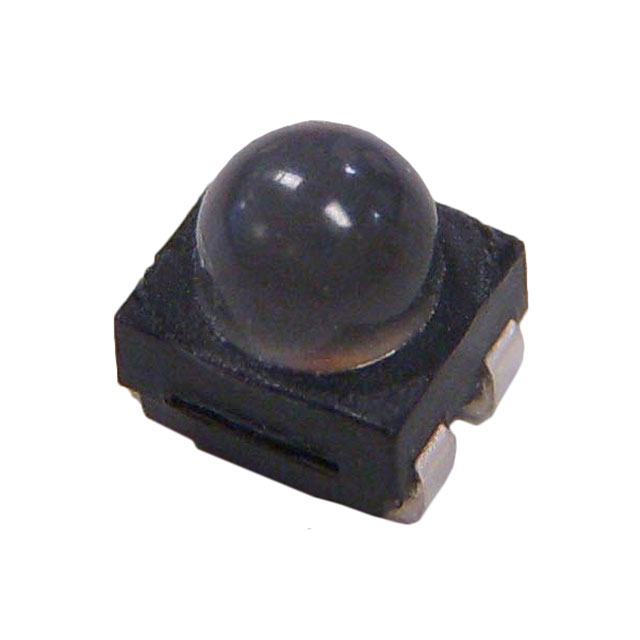

CLM2C-RCA-CWBZ0BB3

Obsolete

Cree LED

LED UNI-COLOR RED 4-PIN PLCC T/R

Search across all available documentation for this part.

Obsolete

Cree LED

LED UNI-COLOR RED 4-PIN PLCC T/R

Technical Specifications

Parameters and characteristics for this part

Part	Height (Max) [Max] [z]	Wavelength - Dominant	Voltage - Forward (Vf) (Typ)	Color	Lens Style	Configuration	Size / Dimension [y]	Size / Dimension [x]	Current - Test	Mounting Type	Package / Case	Lens Size [diameter]	Millicandela Rating	Supplier Device Package
Cree LED CLM2C-ACA-CYBA0343	3.86 mm	590 nm	2 V	Amber	Round with Domed Top	Standard	2.8 mm	3.2 mm	20 mA	Surface Mount	4-PLCC	2.45 mm	5325 mcd	4-PLCC
Cree LED CLM2C-GCA-CYBB0793	3.86 mm	528 nm	3.2 V	Green	Round with Domed Top	Standard	2.8 mm	3.2 mm	20 mA	Surface Mount	4-PLCC	2.45 mm	6275 mcd	4-PLCC
Cree LED CLM2C-ACA-CYAA0253	3.86 mm	590 nm	2 V	Amber	Round with Domed Top	Standard	2.8 mm	3.2 mm	20 mA	Surface Mount	4-PLCC	2.45 mm	4950 mcd	4-PLCC
Cree LED CLM2C-RCA-CYAZ0BB3	3.86 mm	622 nm	2 V	Red	Round with Domed Top	Standard	2.8 mm	3.2 mm	20 mA	Surface Mount	4-PLCC	2.45 mm	4200 mcd	4-PLCC
Cree LED CLM2C-RCA-CXBZ0BB3	3.86 mm	622 nm	2 V	Red	Round with Domed Top	Standard	2.8 mm	3.2 mm	20 mA	Surface Mount	4-PLCC	2.45 mm	3920 mcd	4-PLCC
Cree LED CLM2C-RCA-CWBZ0BB3	3.86 mm	622 nm	2 V	Red	Round with Domed Top	Standard	2.8 mm	3.2 mm	20 mA	Surface Mount	4-PLCC	2.45 mm	3500 mcd	4-PLCC
Cree LED CLM2C-BCA-CWAXB353	3.86 mm	468 nm	3.2 V	Blue	Round with Domed Top	Standard	2.8 mm	3.2 mm	20 mA	Surface Mount	4-PLCC	2.45 mm	1960 mcd	4-PLCC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red 622nm LED Indication - Discrete 2V 4-PLCC
