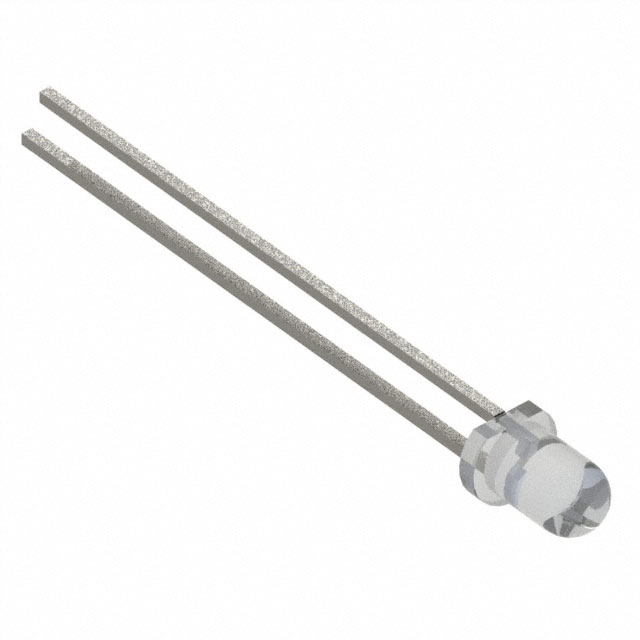

3UGC-S
ActiveBivar Inc.
LED, THROUGH HOLE, 3MM, ULTRA GREEN, 570NM, 200MCD, WATER CLEAR LENS, 30 DEG VIEWING ANGLE / BAG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3UGC-S
ActiveBivar Inc.
LED, THROUGH HOLE, 3MM, ULTRA GREEN, 570NM, 200MCD, WATER CLEAR LENS, 30 DEG VIEWING ANGLE / BAG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3UGC-S |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 4.5 mm |
| Lens Color | Colorless |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 200 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | T-1 |
| Viewing Angle | 30 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Peak | 570 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
3UGC-S Series
Green LED Indication - Discrete 2.1V Radial
