UG-306/U(40)
ActiveHirose Electric USA, Inc.

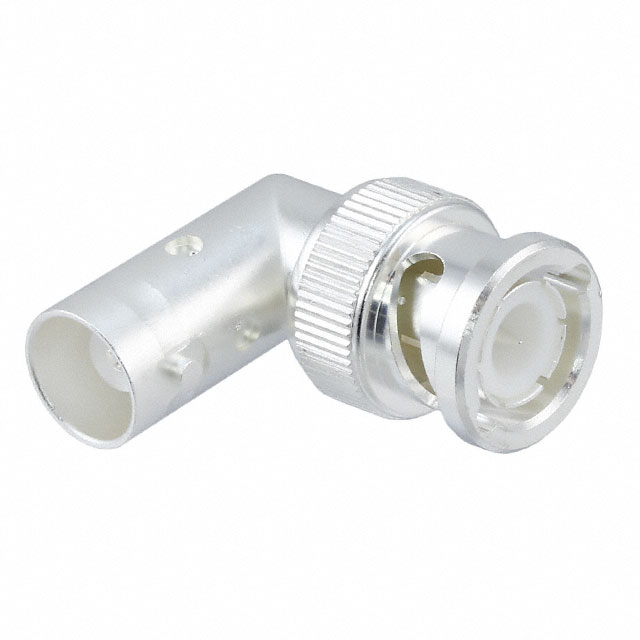

CONN ADAPT PLUG-JACK BNC 50OHM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UG-306/U(40)
ActiveHirose Electric USA, Inc.
CONN ADAPT PLUG-JACK BNC 50OHM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UG-306/U(40) |
|---|---|
| Adapter Series | BNC to BNC |
| Adapter Type | Plug to Jack |
| Body Finish | Silver |
| Body Material | Brass |
| Center Contact Material | Brass, Beryllium Copper |
| Center Contact Plating | Silver |
| Conversion Type | Same Series |
| Convert From (Adapter End) | BNC Plug, Male Pin |
| Convert To (Adapter End) | Female Socket, BNC Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 4 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 1000 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Style | Right Angle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 57.52 | |
| 10 | $ 44.58 | |||
| 25 | $ 40.48 | |||
| 50 | $ 37.71 | |||
| 100 | $ 35.21 | |||
| 250 | $ 32.26 | |||
Description
General part information
UG-306/U Series
Adapter Coaxial Connector BNC Plug, Male Pin To BNC Jack, Female Socket 50 Ohms
