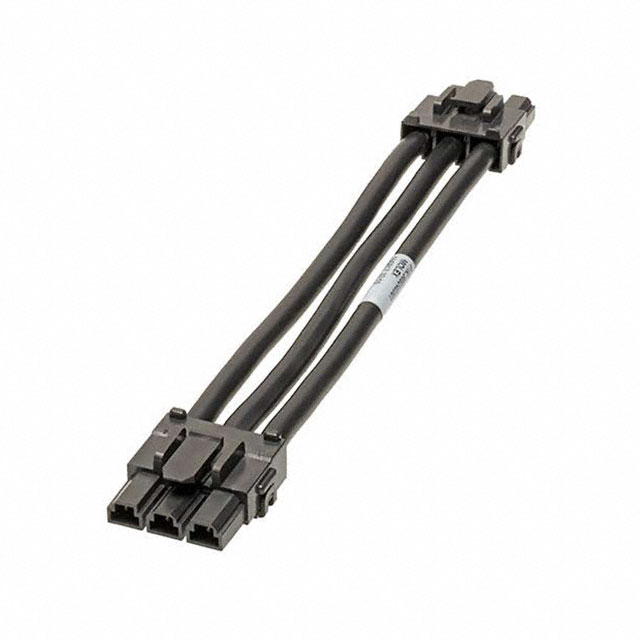

0369240301

Active

Molex

CABLE ASSEMBLY UL 1015 0.15M 8AWG WIRE TO BOARD TO WIRE TO BOARD 3 TO 3 POS F-F CRIMP-CRIMP BAG

Search across all available documentation for this part.

Active

Molex

CABLE ASSEMBLY UL 1015 0.15M 8AWG WIRE TO BOARD TO WIRE TO BOARD 3 TO 3 POS F-F CRIMP-CRIMP BAG

Technical Specifications

Parameters and characteristics for this part

Part	Color	Connector Type	Shielding	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Cable Termination	Length [x]	Length [x]	Number of Rows	Length [x]	Number of Positions	Length	Length	Length
Molex 0369240310	Black Individual (Round)	Socket to Socket	Unshielded	10 mm	0.394 in	0.76 Ám	30 Áin	Gold	Crimp	1 m	3.28 ft	1
Molex 0369240403	Black Individual (Round)	Socket to Socket	Unshielded	10 mm	0.394 in	0.76 Ám	30 Áin	Gold	Crimp	300 mm	0.984 '	1	11.81 "	4
Molex 0369240410	Black Individual (Round)	Socket to Socket	Unshielded	10 mm	0.394 in	0.76 Ám	30 Áin	Gold	Crimp	1 m	3.28 ft	1		4
Molex 0369240303	Black Individual (Round)	Socket to Socket	Unshielded	10 mm	0.394 in	0.76 Ám	30 Áin	Gold	Crimp	300 mm	0.984 '	1	11.81 "
Molex 0369240401	Black Individual (Round)	Socket to Socket	Unshielded	10 mm	0.394 in	0.76 Ám	30 Áin	Gold	Crimp			1		4	150 mm	5.91 "	0.492 ft
Molex 0369240201	Black Individual (Round)	Socket to Socket	Unshielded	10 mm	0.394 in	0.76 Ám	30 Áin	Gold	Crimp			1		2	150 mm	5.91 "	0.492 ft
Molex 0369240301	Black Individual (Round)	Socket to Socket	Unshielded	10 mm	0.394 in	0.76 Ám	30 Áin	Gold	Crimp			1			150 mm	5.91 "	0.492 ft
Molex 0369240203	Black Individual (Round)	Socket to Socket	Unshielded	10 mm	0.394 in	0.76 Ám	30 Áin	Gold	Crimp	300 mm	0.984 '	1	11.81 "	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	300	$ 13.77
Sager	N/A	300	$ 14.95
		525	$ 13.16

General part information

3 Position Cable Assembly Rectangular Socket to Socket 0.492' (150.00mm, 5.91")
