1532209-1

Active

TE Connectivity Aerospace, Defense and Marine

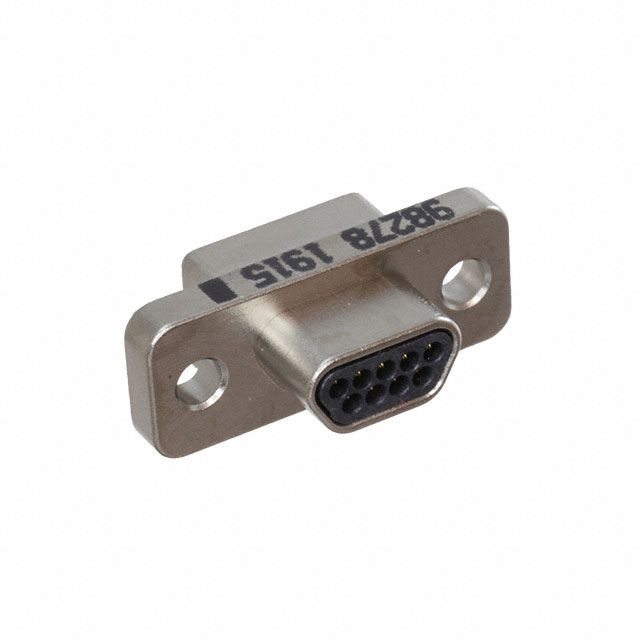

CONN MICRO-D PLUG 9POS SLDR CUP

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN MICRO-D PLUG 9POS SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	1532209-1

Connector Style	Micro-D, D-Type
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Type	Signal
Features	Reverse Layout
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Number of Rows	2
Shell Material, Finish	Electroless, Metal, Nickel Plated

Part	Shell Material, Finish	Number of Rows	Flange Feature	Mounting Type	Connector Style	Features	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Positions	Contact Finish	Contact Type
TE Connectivity Aerospace, Defense and Marine 1532209-1	Electroless Metal Nickel Plated	2	Housing/Shell (Unthreaded)	Free Hanging (In-Line)	D-Type Micro-D	Reverse Layout	50 µin	1.27 µm	Male Pins Plug	9	Gold	Signal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Type, Micro-D Plug, Male Pins Connector
