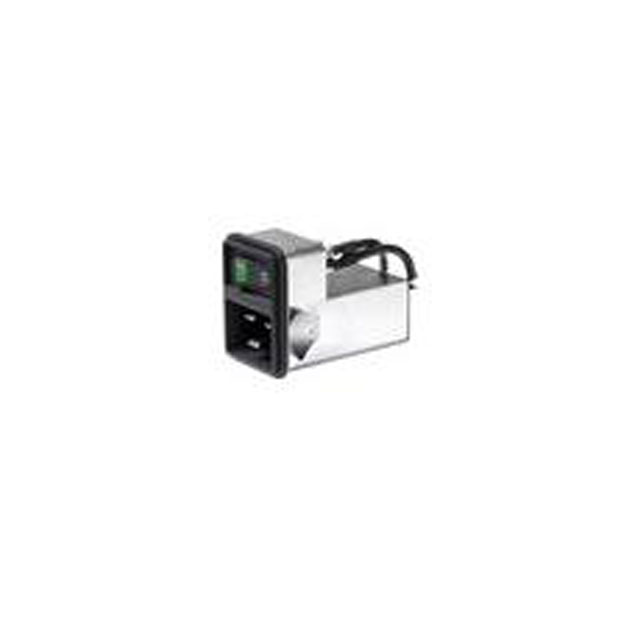

EC12.3201.001

Active

SCHURTER Inc.

AC POWER ENTRY MODULES 12A SCREW-ON NON-ILL

Search across all available documentation for this part.

Active

SCHURTER Inc.

AC POWER ENTRY MODULES 12A SCREW-ON NON-ILL

Technical Specifications

Parameters and characteristics for this part

Specification	EC12.3201.001

Accomodates a Fuse	False
Approval Agency	CQC, cURus, ENEC
Connector Style	IEC 320-C20
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	12 A
Features	Shielded
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	33.9 mm
Panel Cutout Dimensions [y]	48 mm
Switch Features	Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

AC Power Entry Modules 12A SCREW-ON NON-ILL

Part	Features	Termination	Termination	Termination	Switch Features	Voltage Rating - Appliance Inlet	Accomodates a Fuse	Ingress Protection	Approval Agency	Connector Style	Mounting Type	Connector Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Material Flammability Rating	Current Rating - Appliance Inlet	Filter Type	Current Rating - Filter
SCHURTER Inc. EC12.3201.001	Shielded	0.25 in	6.3 mm	Quick Connect	Switch On-Off	250 VAC		IP40	CQC cURus ENEC	IEC 320-C20	Flange Panel Mount	Receptacle Male Blades - Module	33.9 mm	48 mm	UL94 V-0	10 A	Filtered (EMI RFI) - Commercial Medical	12 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC Power Entry Modules 12A SCREW-ON NON-ILL
