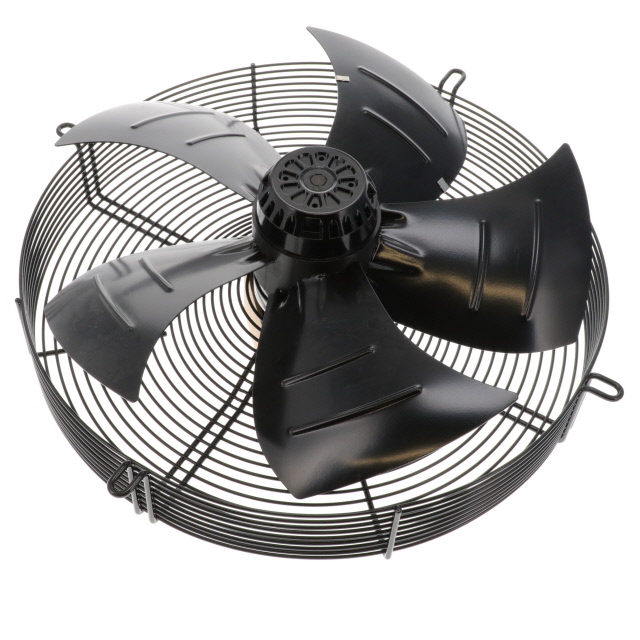

S4D450-AP03-10
Activeebm-papst Inc.
FAN AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S4D450-AP03-10
Activeebm-papst Inc.
FAN AXIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S4D450-AP03-10 |
|---|---|
| Bearing Type | Ball |
| Current Rating (Amps) | 600 mA |
| Fan Type | Tubeaxial, 3 Phase |
| Ingress Protection | IP44 |
| Material - Blade | Steel |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 380 W |
| RPM | 1460 RPM |
| Size / Dimension [diameter] | 522 mm |
| Static Pressure | 75 Pa |
| Static Pressure | 0.301 in H2O |
| Termination | Terminal Block |
| Voltage - Rated | 460 VAC |
| Width [y] | 200.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 626.82 | |
| 10 | $ 578.26 | |||
Description
General part information
S4D450 Series
Fan Tubeaxial, 3 Phase 460VAC Round - 522mm Dia Ball Terminal Block
