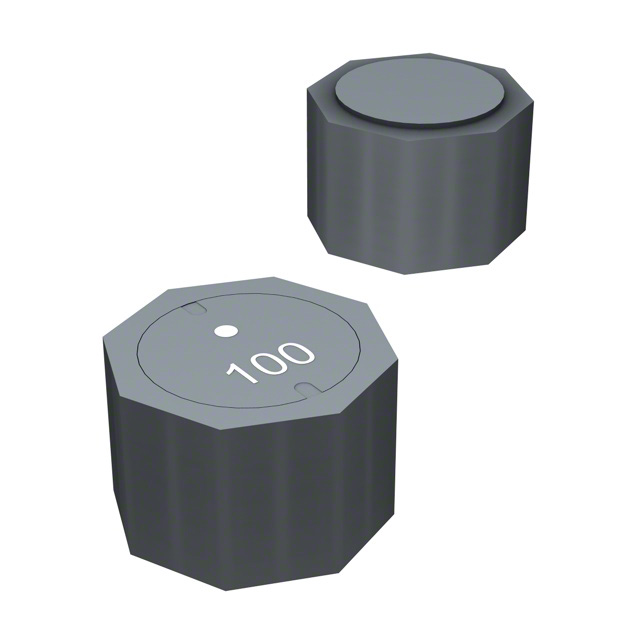

SRU1063-1R6Y

Active

Bourns Inc.

IND10X10X6.5MM,1.6UH30%8A,SHDSMD /TAPE & REEL - 13" REEL

Search across all available documentation for this part.

Active

Bourns Inc.

IND10X10X6.5MM,1.6UH30%8A,SHDSMD /TAPE & REEL - 13" REEL

Technical Specifications

Parameters and characteristics for this part

Part	DC Resistance (DCR)	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Type	Frequency - Self Resonant	Inductance Frequency - Test	Inductance	Q @ Freq	Material - Core	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Tolerance	Package / Case	Current - Saturation (Isat)	Shielding	Current Rating (Amps)	DC Resistance (DCR) [Max]
Bourns Inc. SRU1063-150Y	42 mOhm	125 °C	-40 °C	6.8 mm	0.268 in	Surface Mount	Drum Core Wirewound	14 MHz	100 kHz	15 µH	2.52 MHz 12	Ferrite	10 mm	0.394 in	10 mm	0.394 "	30 %	Nonstandard	3.4 A	Shielded	3.2 A
Bourns Inc. SRU1063-100Y		125 °C	-40 °C	6.8 mm	0.268 in	Surface Mount	Drum Core Wirewound	18 MHz	100 kHz	10 µH	2.52 MHz 14	Ferrite	10 mm	0.394 in	10 mm	0.394 "	30 %	Nonstandard	4 A	Shielded	3.8 A	38 mOhm
Bourns Inc. SRU1063-1R6Y		125 °C	-40 °C	6.8 mm	0.268 in	Surface Mount	Drum Core Wirewound	65 MHz	100 kHz	1.6 µH	7.96 MHz 13	Ferrite	10 mm	0.394 in	10 mm	0.394 "	30 %	Nonstandard	10 A	Shielded	8 A	9 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.6 µH Shielded Drum Core, Wirewound Inductor 8 A 9mOhm Max Nonstandard
