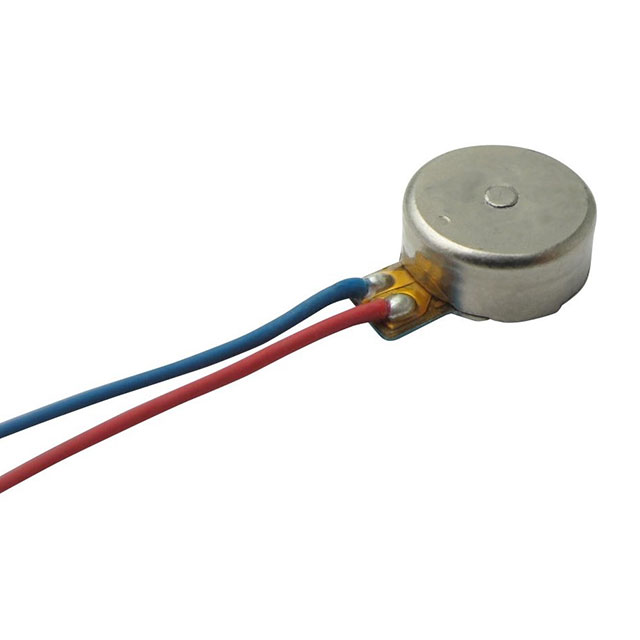

VW0625AB001G
ActiveVybronics Inc
VIBRATION ERM MTR 15K RPM 0.55G
Deep-Dive with AI
Search across all available documentation for this part.
VW0625AB001G
ActiveVybronics Inc
VIBRATION ERM MTR 15K RPM 0.55G
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VW0625AB001G |
|---|---|
| Function | Vibration, ERM (Haptic), ERM, Vibration |
| Motor Type | Brushless (BLDC) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| RPM | 15000 RPM |
| Size / Dimension [diameter] | 6 mm |
| Size / Dimension [diameter] | 0.236 in |
| Termination Style | Wire Leads |
| Type | DC Motor |
| Voltage - Rated | 3 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.51 | |
| 5 | $ 4.15 | |||
| 10 | $ 4.00 | |||
| 25 | $ 3.81 | |||
| 50 | $ 3.68 | |||
| 100 | $ 3.54 | |||
| 300 | $ 3.35 | |||
| 500 | $ 3.26 | |||
| 1000 | $ 3.14 | |||
Description
General part information
W0625AB001 Series
Brushless (BLDC) DC Motor Vibration, ERM (Haptic) 15000 RPM 3VDC
