08S36-01-2-04S

Active

Grayhill Inc.

ELECTRICALSWITCH ROTARY NOTOVER5AMP

Search across all available documentation for this part.

Active

Grayhill Inc.

ELECTRICALSWITCH ROTARY NOTOVER5AMP

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Voltage Rating - DC	Circuit per Deck	Actuator Type [diameter]	Actuator Type	Number of Poles per Deck	Index Stops	Contact Timing	Depth Behind Panel	Actuator Length [x]	Voltage Rating - AC	Contact Finish	Number of Decks	Termination Style	Angle of Throw	Contact Material	Number of Positions	Features	Depth Behind Panel [z]	Number of Decks [custom]
Grayhill Inc. 08S36-02-2-03N	250 mA	28 V	DPDT	3.17 mm	Flatted	2	Fixed	Shorting	31.19 mm	9.53 mm	115 V	Gold	2	Solder Lug	36 °	Silver Alloy
Grayhill Inc. 08S36-04-1-10N	250 mA	28 V	SP10T	3.17 mm	Flatted	1	Continuous	Non-Shorting		9.53 mm	115 V	Gold	4	Solder Lug	36 °	Silver Alloy	10	Shaft and Panel Sealed	44.81 mm
Grayhill Inc. 08S36-03-2-05N	250 mA	28 V	DP5T	3.17 mm	Flatted	2	Fixed	Non-Shorting	38 mm	9.53 mm	115 V	Gold	3	Solder Lug	36 °	Silver Alloy		Shaft and Panel Sealed
Grayhill Inc. 08S36-02-1-08N	250 mA	28 V	SP8T	3.17 mm	Flatted	1	Fixed	Non-Shorting	31.19 mm	9.53 mm	115 V	Gold	2	Solder Lug	36 °	Silver Alloy	8	Shaft and Panel Sealed
Grayhill Inc. 08S36-01-2-04S	250 mA	28 V	DP4T	3.17 mm	Flatted	2	Fixed	Shorting		9.53 mm	115 V	Gold		Solder Lug	36 °	Silver Alloy	4	Shaft and Panel Sealed	24.38 mm	1
Grayhill Inc. 08S36-02-1-10N	250 mA	28 V	SP10T	3.17 mm	Flatted	1	Continuous	Non-Shorting	31.19 mm	9.53 mm	115 V	Gold	2	Solder Lug	36 °	Silver Alloy	10	Shaft and Panel Sealed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

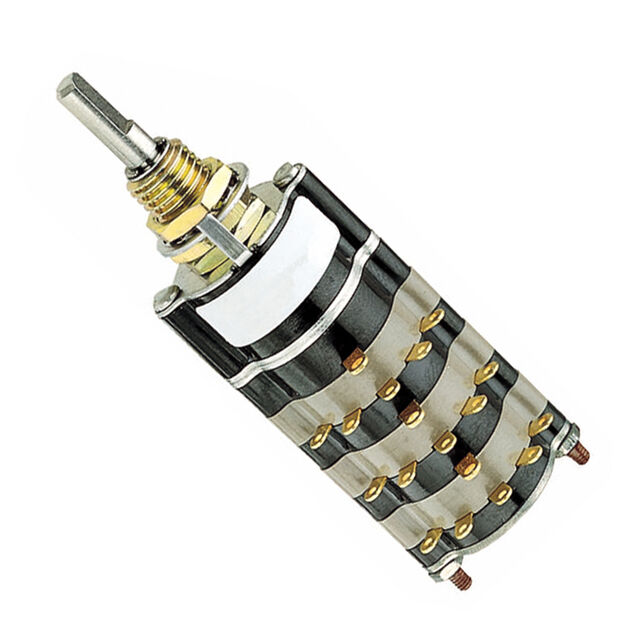

Rotary Switch 4 Position DP4T 250mA (AC/DC) 115 VAC Panel Mount
