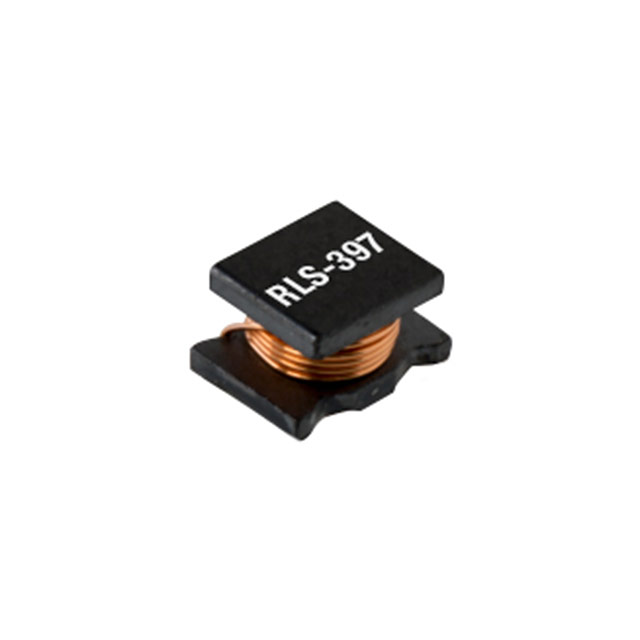

RLS-397
ActiveRECOM Power
POWER INDUCTOR (SMD), 3.9 ΜH, 1.32 A, UNSHIELDED, 2.1 A, RLS-397 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
RLS-397
ActiveRECOM Power
POWER INDUCTOR (SMD), 3.9 ΜH, 1.32 A, UNSHIELDED, 2.1 A, RLS-397 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RLS-397 |
|---|---|
| Current - Saturation (Isat) | 2.1 A |
| Current Rating (Amps) | 1.32 A |
| DC Resistance (DCR) | 140 mOhm |
| Height - Seated (Max) [Max] [z] | 0.122 " |
| Height - Seated (Max) [Max] [z] | 3.1 mm |
| Inductance | 3.9 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 1812 (4532 Metric) |
| Shielding | Unshielded |
| Size / Dimension [x] | 0.177 in |
| Size / Dimension [x] | 4.5 mm |
| Size / Dimension [y] | 3.2 mm |
| Size / Dimension [y] | 0.126 " |
| Tolerance | 20 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RLS-397 Series
Power Inductors - SMD Line Inductors for RECOM Power Supply
