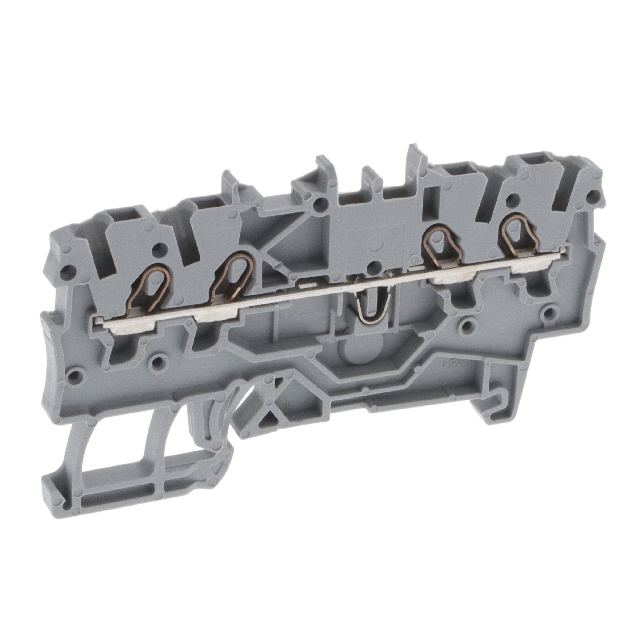

2000-1401
ActiveWAGO Corporation
DIN RAIL MOUNT TERMINAL BLOCK, 4 POSITIONS, 24 AWG, 16 AWG, 1.5 MM², CLAMP, 18 A
Deep-Dive with AI
Search across all available documentation for this part.
2000-1401
ActiveWAGO Corporation
DIN RAIL MOUNT TERMINAL BLOCK, 4 POSITIONS, 24 AWG, 16 AWG, 1.5 MM², CLAMP, 18 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2000-1401 |
|---|---|
| Color | Gray |
| Current - IEC | 17.5 A |
| Material - Insulation | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Stripping Length [Max] | 11 mm |
| Stripping Length [Min] | 9 mm |
| Terminal - Width [y] | 3.5 mm |
| Termination Style | Push In, Spring |
| Type | Feed Through |
| Voltage - IEC | 800 V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG [Max] | 20 AWG |
| Wire Gauge or Range - AWG [Min] | 16 AWG |
| Wire Gauge or Range - mm² [Max] | 1.5 mm² |
| Wire Gauge or Range - mm² [Min] | 0.5 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
2000-140 Series
Terminal Block Connector 4 Position Feed Through Gray 16-20 AWG
