NHD-0108FZ-RN-YBW

Active

Newhaven Display Intl

LCD MOD 8 DIG 8 X 1 REFLECTIVE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet LCD Safe Handling Procedure +1

NHD-0108FZ-RN-YBW

Active

Newhaven Display Intl

LCD MOD 8 DIG 8 X 1 REFLECTIVE

Deep-Dive with AI

DocumentsDatasheet LCD Safe Handling Procedure +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-0108FZ-RN-YBW

Background Color	Green
Backlight	Without Backlight
Character Format [x]	5 Dots
Character Format [y]	8 Dots
Character Size [x]	10.8 mm
Character Size [y]	6.5 mm
Controller Type	SPLC780D, ST7066U
Display Format [x]	8
Display Format [y]	1
Display Mode	Reflective
Display Type	STN - Super-Twisted Nematic
Dot Size [x]	1.3 mm
Dot Size [y]	1.3 mm
Interface	Parallel
Number of Characters	8
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline L x W x H [x]	84 mm
Outline L x W x H [y]	44 mm
Outline L x W x H [z]	9 mm
Text Color	Blue
Viewing Area [x]	64.5 mm
Viewing Area [y]	16.4 mm

NHD-0108 Series

Part	Number of Characters	Character Size [custom]	Character Size [custom]	Display Format [x]	Display Format [y]	Display Type	Character Format [y]	Character Format [x]	Controller Type	Outline L x W x H [x]	Outline L x W x H [y]	Outline L x W x H [z]	Display Mode	Text Color	Backlight	Background Color	Voltage - Supply [Max]	Voltage - Supply [Min]	Dot Size [custom]	Dot Size [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Interface	Viewing Area [y]	Viewing Area [x]	Voltage - Supply	Dot Size [x]	Dot Size [y]	Character Size [z]	Character Size [y]	Character Size [x]
Newhaven Display Intl NHD-0108CZ-RN-GBW	8	4.2 mm	7.71 mm	8	1	STN - Super-Twisted Nematic	8 Dots	5 Dots	SPLC780D ST7066U	69 mm	27 mm	8.5 mm	Reflective	Blue	Without Backlight	Gray	5.5 V	4.7 V	0.8 mm	0.92 mm	-20 C	70 °C	Parallel	13.8 mm	45.2 mm
Newhaven Display Intl NHD-0108CZ-FSW-GBW-33V3	8	4.2 mm	7.71 mm	8	1	STN - Super-Twisted Nematic	8 Dots	5 Dots	SPLC780D ST7066U	69 mm	27 mm	13 mm	Transflective	Blue	LED - White	Gray			0.8 mm	0.92 mm	-20 C	70 °C	Parallel	13.5 mm	45 mm	3.3 V
Newhaven Display Intl NHD-0108BZ-RN-YBW-3V	8			8	1	STN - Super-Twisted Nematic	8 Dots	5 Dots		53 mm	24.2 mm	11 mm	Reflective	Gray	Without Backlight	Green	3.3 V	2.7 V			-20 C	70 °C	Parallel	12.6 mm	35 mm		0.6 mm	0.8 mm	7.1 mm	3.4 mm
Newhaven Display Intl NHD-0108CZ-FSW-GBW-3V3	8	4.2 mm	7.71 mm	8	1	STN - Super-Twisted Nematic	8 Dots	5 Dots		69 mm	27 mm	13 mm	Transflective	Blue	LED - White	Gray			0.8 mm	0.92 mm	-20 C	70 °C	Parallel	13.8 mm	45.2 mm	3.3 V
Newhaven Display Intl NHD-0108BZ-RN-GBW	8			8	1	STN - Super-Twisted Nematic	8 Dots	5 Dots	SPLC780D ST7066U	53 mm	24.2 mm	11 mm	Reflective	Blue	Without Backlight	Gray	5.5 V	4.7 V			-20 C	70 °C	Parallel	12.6 mm	35 mm		0.6 mm	0.8 mm	7.1 mm	3.4 mm
Newhaven Display Intl NHD-0108HZ-FSW-GBW	8	5.02 mm	7.28 mm	8	1	STN - Super-Twisted Nematic	8 Dots	5 Dots	SPLC780D ST7066U	60.7 mm	33.85 mm	6.25 mm	Transflective	Blue	LED - White	Gray	3.5 V	3.1 V			-20 C	70 °C	Parallel	14.7 mm	51.2 mm		0.94 mm	0.84 mm
Newhaven Display Intl NHD-0108FZ-RN-YBW	8			8	1	STN - Super-Twisted Nematic	8 Dots	5 Dots	SPLC780D ST7066U	84 mm	44 mm	9 mm	Reflective	Blue	Without Backlight	Green					-20 C	70 °C	Parallel	16.4 mm	64.5 mm		1.3 mm	1.3 mm		6.5 mm	10.8 mm
Newhaven Display Intl NHD-0108BZ-RN-YBW-33V	8			8	1	STN - Super-Twisted Nematic	8 Dots	5 Dots	SPLC780D ST7066U	53 mm	24.2 mm	11 mm	Reflective	Blue	Without Backlight	Green					-20 C	70 °C	Parallel	12.6 mm	35 mm	3.3 V	0.6 mm	0.8 mm	7.1 mm	3.4 mm
Newhaven Display Intl NHD-0108CZ-RN-GBW-33V	8	4.2 mm	7.71 mm	8	1	STN - Super-Twisted Nematic	8 Dots	5 Dots	SPLC780D ST7066U	69 mm	27 mm	8.5 mm	Reflective	Blue	Without Backlight	Gray			0.8 mm	0.92 mm	-20 C	70 °C	Parallel	13.8 mm	45.2 mm	3.3 V
Newhaven Display Intl NHD-0108CZ-FL-GBW	8	4.2 mm	7.71 mm	8	1	STN - Super-Twisted Nematic	8 Dots	5 Dots	SPLC780D ST7066U	69 mm	27 mm	13 mm	Transflective	Blue		Green	5.5 V	4.7 V	0.8 mm	0.92 mm	-20 C	70 °C	Parallel	13.8 mm	45.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 9.97
		5	$ 9.37
		10	$ 8.77
		50	$ 8.28
		100	$ 7.88
		250	$ 7.48
		500	$ 7.18

Description

General part information

NHD-0108 Series

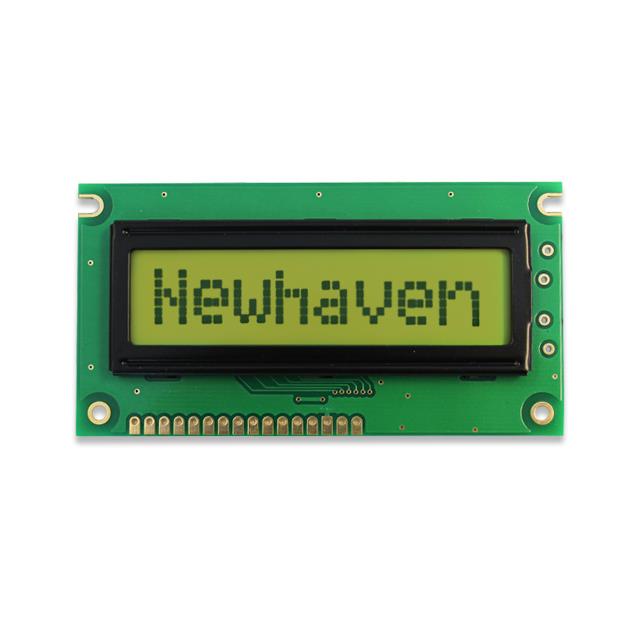

Character Display Module Reflective 5 x 8 Dots STN - Super-Twisted Nematic Without Backlight Parallel 84.00mm x 44.00mm x 9.00mm
