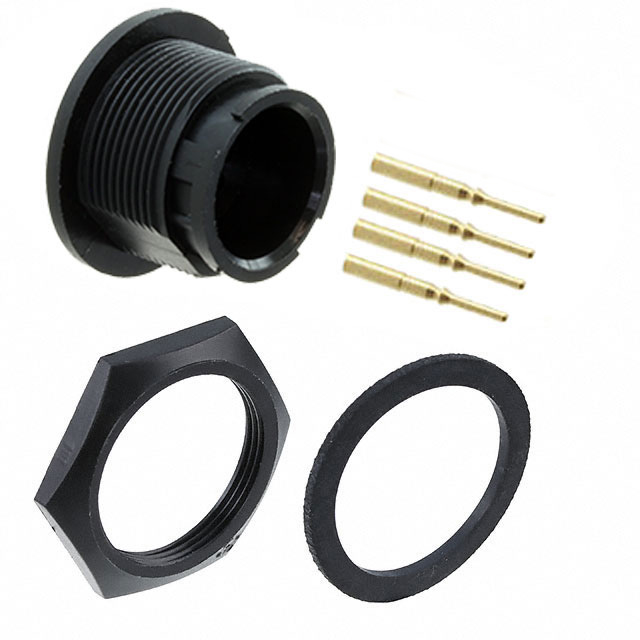

7380-4PG-300

Active

Conxall/Switchcraft

CONN RCPT MALE 4POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 4POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	7380-4PG-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	4
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

Part	Voltage Rating	Mounting Feature	Backshell Material, Plating	Fastening Type	Contact Material	Color	Ingress Protection	Termination	Shielding	Orientation	Applications	Number of Positions	Current Rating (Amps)	Contact Finish - Mating	Primary Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]
Conxall/Switchcraft 7380-4PG-300	600 V	Bulkhead - Front Side Nut	Nylon Polyamide (PA)	Bayonet Lock	Brass	Black	Weathertight	Crimp	Unshielded	Keyed	Automotive Communication Systems Instrumentation	4	Varies by Wire Gauge	Gold	Plastic	Male Pins Receptacle	-40 °C	115 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Crimp
