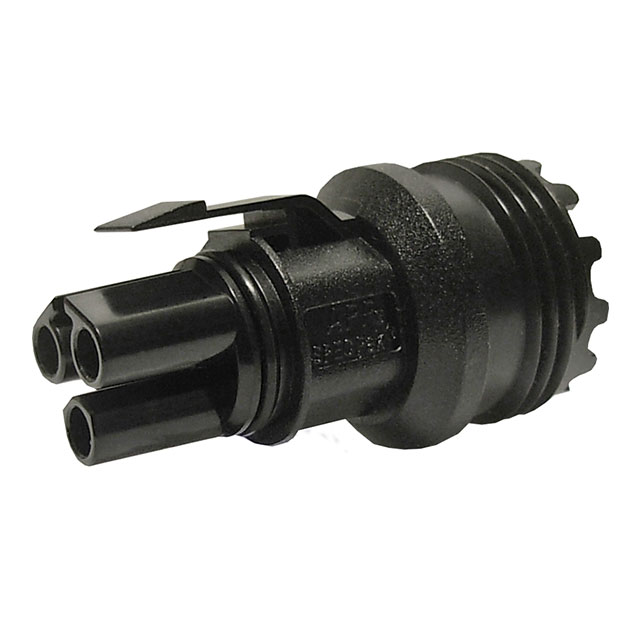

SK6-019M03

Active

Anderson Power Products, Inc.

3P MINI PL SPEC PAK PLUG KIT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Anderson Power Products, Inc.

3P MINI PL SPEC PAK PLUG KIT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	SK6-019M03

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Latch Lock
Features	Backshell
Housing Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Material	Polycarbonate (PC)
Shell Size - Insert	19-3
Shielding	Unshielded
Type	For Female Sockets

Part	Ingress Protection	Contact Shape	Housing Color	Material Flammability Rating	Insert Material	Contact Type	Connector Type	Shielding	Shell Size - Insert	Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Mounting Type	Orientation	Number of Positions	Shell Material	Features	Note
Anderson Power Products, Inc. SK6-019M03	IP68 - Dust Tight Waterproof	Circular	Black	UL94 V-0	Polycarbonate (PC)	Crimp	Plug Housing	Unshielded	19-3	For Female Sockets	-20 C	105 ░C	Latch Lock	Free Hanging (In-Line)	Keyed	3	Polycarbonate (PC)	Backshell	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 (Power) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell
