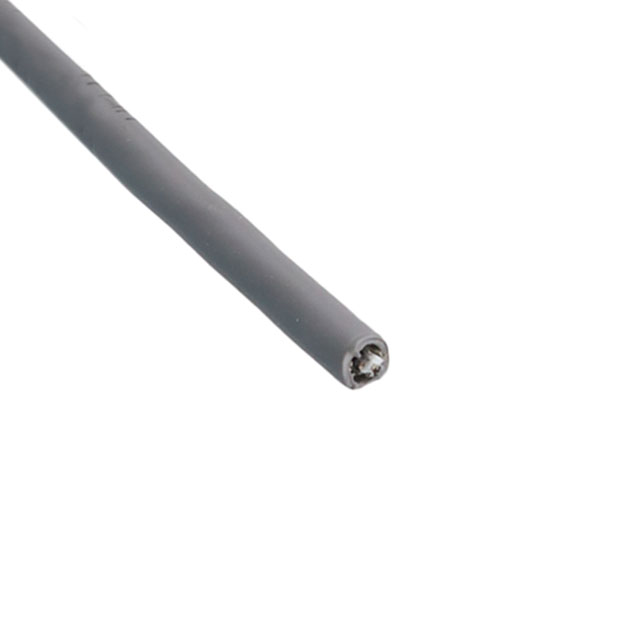

1709 SL001

Active

ALPHA WIRE

CABLE MIC 2CON 24AWG SLATE 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE MIC 2CON 24AWG SLATE 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	1709 SL001

Cable Type	Microphone
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	10
Conductor Strand [diameter]	34 AWG
Jacket (Insulation) Diameter [diameter]	4.7 mm
Jacket (Insulation) Diameter [diameter]	0.185 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.762 mm
Jacket (Insulation) Thickness	0.03 in
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	90 %
Shield Material	Copper, Tinned
Shield Type	Spiral
Usage	Control, Communication
Wire Gauge	24 AWG

Part	Conductor Insulation	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Shield Type	Conductor Strand [diameter]	Conductor Strand [custom]	Number of Conductors	Jacket Color	Jacket (Insulation) Material	Conductor Material	Length [x]	Length [x]	Shield Coverage	Length	Length
ALPHA WIRE 1709 SL005	Polyethylene (PE)	Communication Control	-20 C	60 °C	24 AWG	Copper Tinned	0.762 mm	0.03 in	4.7 mm	0.185 in	Microphone	Spiral	34 AWG	10	2	Slate	Poly-Vinyl Chloride (PVC)	Copper Tinned	30.5 m	100 ft	90 %
ALPHA WIRE 1709 SL001	Polyethylene (PE)	Communication Control	-20 C	60 °C	24 AWG	Copper Tinned	0.762 mm	0.03 in	4.7 mm	0.185 in	Microphone	Spiral	34 AWG	10	2	Slate	Poly-Vinyl Chloride (PVC)	Copper Tinned			90 %	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 1801.00

General part information

2 Conductor Microphone Cable Slate 24 AWG Spiral 1000.0' (304.8m)
