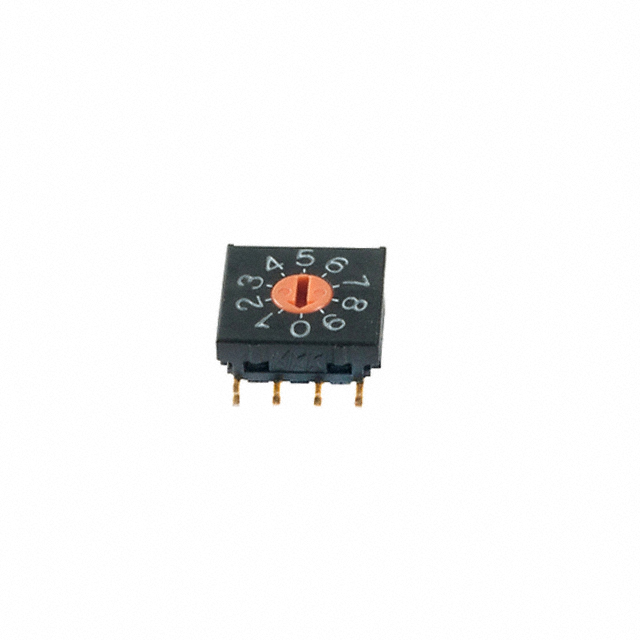

FR02FR10P-S

Active

NKK Switches

SWITCH DIP N.O./N.C. SP10T 10 FLUSH SCREWDRIVER 0.1A 5VDC GULL WING 1000CYCLES SMD TUBE

Search across all available documentation for this part.

Active

NKK Switches

SWITCH DIP N.O./N.C. SP10T 10 FLUSH SCREWDRIVER 0.1A 5VDC GULL WING 1000CYCLES SMD TUBE

Technical Specifications

Parameters and characteristics for this part

Specification	FR02FR10P-S

Actuator Level	Flush, Recessed
Actuator Type	Rotary for Tool
Body Material	Polyamide (PA), Nylon, Glass Filled
Circuit	BCD
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	100 mA
Electrical Life	10000 Cycles
Height Above Board	0.154 in
Height Above Board	3.9 mm
Length	10 mm
Length	0.394 in
Mechanical Life	10000 Steps
Mounting Type	Surface Mount
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	Gull Wing
Voltage Rating	5 V
Washable	False

Part	Contact Material	Height Above Board	Height Above Board	Pitch [x]	Pitch	Pitch [x]	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Level	Mechanical Life	Length	Length	Voltage Rating	Washable	Termination Style	Actuator Type	Body Material	Circuit	Contact Finish	Number of Positions	Mounting Type	Current Rating (Amps)
NKK Switches FR02FR10P-R	Copper Alloy	0.154 in	3.9 mm	0.1 in	Full	2.54 mm	10000 Cycles	-25 °C	85 °C	Flush Recessed	10000 Steps	10 mm	0.394 in	5 V		Gull Wing	Rotary for Tool	Polyamide (PA) Nylon Glass Filled	BCD	Gold	10	Surface Mount	100 mA
NKK Switches FR02FR10P-S	Copper Alloy	0.154 in	3.9 mm	0.1 in	Full	2.54 mm	10000 Cycles	-25 °C	85 °C	Flush Recessed	10000 Steps	10 mm	0.394 in	5 V		Gull Wing	Rotary for Tool	Polyamide (PA) Nylon Glass Filled	BCD	Gold	10	Surface Mount	100 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch BCD 10 Position Surface Mount Rotary for Tool Actuator 100mA 5VDC
