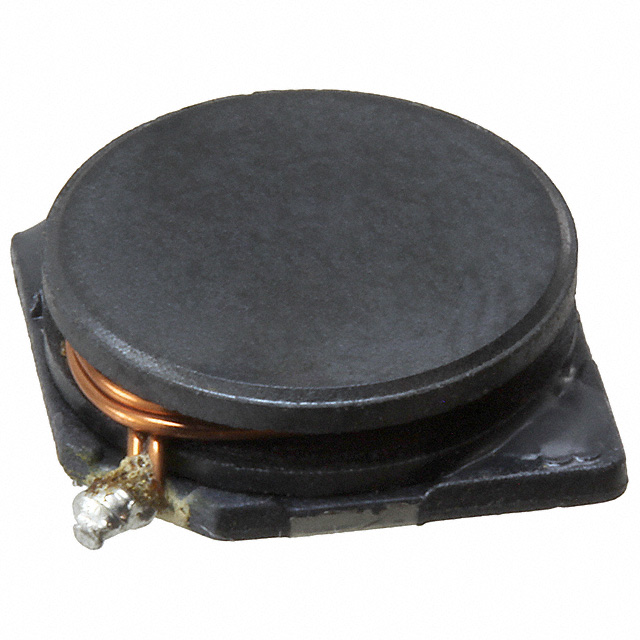

SDR1030-100M

Active

Bourns Inc.

IND10X10X3MM,10UH20%2A,NON-SHDSMD /TAPE & REEL - 13" REEL

Search across all available documentation for this part.

Active

Bourns Inc.

IND10X10X3MM,10UH20%2A,NON-SHDSMD /TAPE & REEL - 13" REEL

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Q @ Freq	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Resistance (DCR) [Max]	Type	Inductance Frequency - Test	Material - Core	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current Rating (Amps)	Frequency - Self Resonant	Inductance	Shielding	Current - Saturation (Isat)	DC Resistance (DCR)
Bourns Inc. SDR1030-221K	Surface Mount	Nonstandard	125 °C	-40 °C	10 %	23 796 kHz	10 mm	0.394 in	10 mm	0.394 "	1.15 Ohm	Drum Core Wirewound	100 kHz	Ferrite	0.13 "	3.3 mm	460 mA	6.2 MHz	220 µH	Unshielded	480 mA
Bourns Inc. SDR1030-6R8M	Surface Mount	Nonstandard	125 °C	-40 °C	20 %	7.96 MHz 15	10 mm	0.394 in	10 mm	0.394 "		Drum Core Wirewound	100 kHz	Ferrite	0.13 "	3.3 mm	2.2 A	38.1 MHz	6.8 µH	Unshielded	2.8 A
Bourns Inc. SDR1030-100M	Surface Mount	Nonstandard	125 °C	-40 °C	20 %	2.52 MHz 15	10 mm	0.394 in	10 mm	0.394 "		Drum Core Wirewound	100 kHz	Ferrite	0.13 "	3.3 mm	2 A	33.1 MHz	10 µH	Unshielded	2.4 A	64 mOhm
Bourns Inc. SDR1030-102K	Surface Mount	Nonstandard	125 °C	-40 °C	10 %	42 252 kHz	10 mm	0.394 in	10 mm	0.394 "	4.7 Ohm	Drum Core Wirewound	100 kHz	Ferrite	0.13 "	3.3 mm	0.2 A	2.5 MHz	1 mH	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 µH Unshielded Drum Core, Wirewound Inductor 2 A 64mOhm Max Nonstandard
