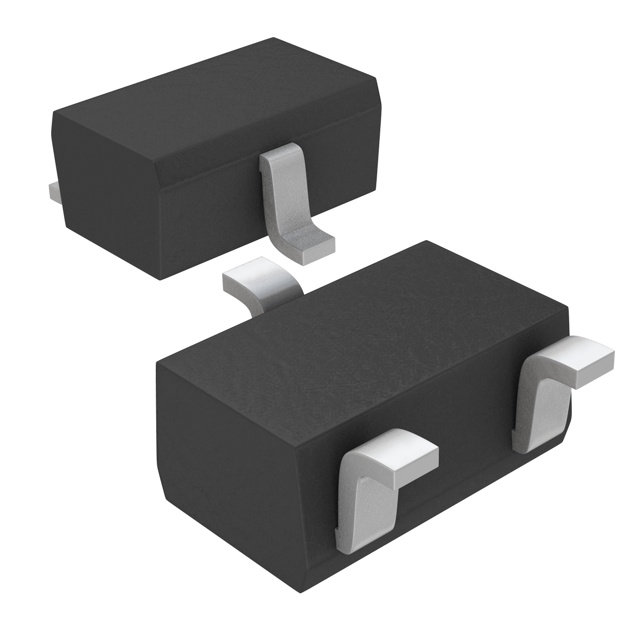

2SC4774T106S
Rohm Semiconductor
TRANS GP BJT NPN 6V 0.05A 3-PIN UMT T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2SC4774T106S
Rohm Semiconductor
TRANS GP BJT NPN 6V 0.05A 3-PIN UMT T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2SC4774T106S |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 50 mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | 180 hFE |
| Frequency - Transition | 800 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature | 150 °C |
| Package / Case | SC-70, SOT-323 |
| Power - Max [Max] | 200 mW |
| Supplier Device Package | UMT3 |
| Transistor Type | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.46 | |
| 10 | $ 0.34 | |||
| 25 | $ 0.31 | |||
| 100 | $ 0.21 | |||
| 250 | $ 0.18 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.11 | |||
| Digi-Reel® | 1 | $ 0.46 | ||
| 10 | $ 0.34 | |||
| 25 | $ 0.31 | |||
| 100 | $ 0.21 | |||
| 250 | $ 0.18 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.11 | |||
| Tape & Reel (TR) | 3000 | $ 0.10 | ||
| 6000 | $ 0.10 | |||
| 9000 | $ 0.08 | |||
| 15000 | $ 0.09 | |||
| 21000 | $ 0.08 | |||
| 30000 | $ 0.08 | |||
| 75000 | $ 0.07 | |||
Description
General part information
2SC4774 Series
Various products are available in lineup developed focusing on energy-saving and high reliability as main concepts, covering from ultra-compact packages to power-packages to meet the needs in market.· For high frequency· Small Surface Mount Package· Pb Free/RoHS Compliant
Documents
Technical documentation and resources
