55442.75051

Active

ebm-papst Inc.

FAN BLOWER CF 300X79MM 115VAC

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN BLOWER CF 300X79MM 115VAC

Technical Specifications

Parameters and characteristics for this part

Part	Weight	Weight	Bearing Type	Static Pressure	Static Pressure	Air Flow	Air Flow	Power (Watts)	Voltage - Rated	Termination	Width [y]	Material - Frame	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [y]	RPM	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Blade	Fan Type	Noise	Size / Dimension [diameter]
ebm-papst Inc. 55442.70170	3.2 lbs	1.5 kg	Sleeve	88 Pa	0.353 in H2O	133 CFM	3.72 m³/min	40 W	115 VAC	Terminal Block	79 mm	Steel	45 mm	391 mm	71 mm	2100 RPM	60 °C	0 °C	0 °C	60 °C	Aluminum	Blower Cross Flow
ebm-papst Inc. 55442.40491			Sleeve			75 CFM	2.1 m³/min	29 W	115 VAC	Terminal Block	79 mm	Steel	45 mm	265 mm	71 mm						Aluminum	Blower Cross Flow	50 dB(A)
ebm-papst Inc. 55442.60082	2.4 lbs	1.1 kg	Sleeve	83 Pa	0.333 in H2O	107 CFM	3 m³/min	41 W	115 VAC	Terminal Block	79 mm	Steel		331 mm	71 mm	2100 RPM					Aluminum	Blower Cross Flow		45 mm
ebm-papst Inc. 55442.75051	3.2 lbs	1.5 kg	Sleeve	88 Pa	0.353 in H2O	133 CFM	3.72 m³/min	40 W	115 VAC	Terminal Block	79 mm	Steel	45 mm	391 mm	71 mm	2100 RPM	60 °C	0 °C	0 °C	60 °C	Aluminum	Blower Cross Flow

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	96	$ 68.15

General part information

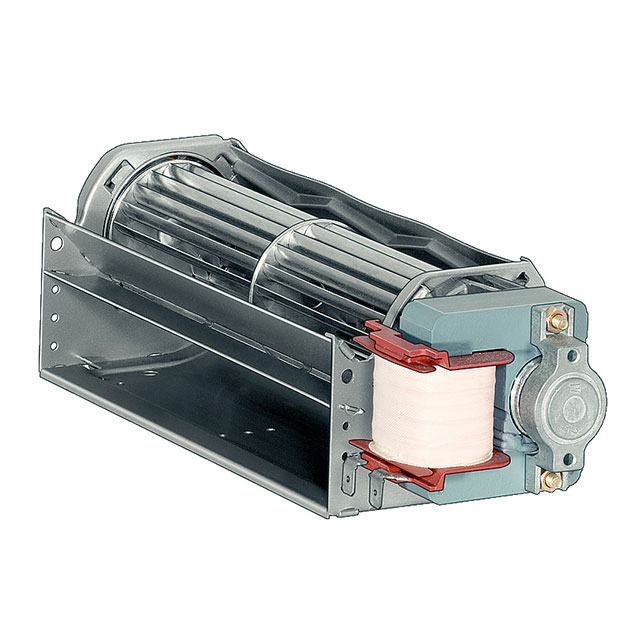

Fan Blower, Cross Flow 115VAC Rectangular - 391mm L x 71mm H (45mm Dia) Sleeve 133.0 CFM (3.72m³/min) Terminal Block
