2791032

Active

Phoenix Contact

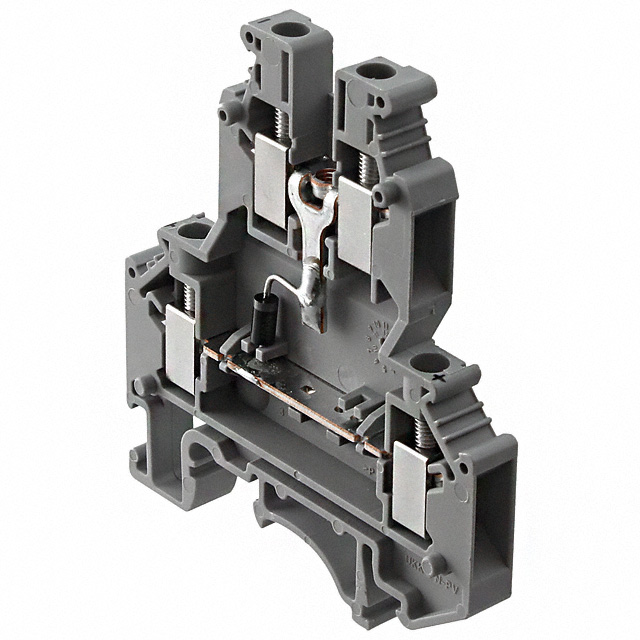

MODULAR TERMINAL BLOCK, 32A, 4MM2, 1 ROW(S), 2 DECK(S), ROHS COMPLIANT

Search across all available documentation for this part.

Active

Phoenix Contact

MODULAR TERMINAL BLOCK, 32A, 4MM2, 1 ROW(S), 2 DECK(S), ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	2791032

Color	Gray
Current - IEC	32 A
Current - UL	30 A
Features	Diode
Material - Insulation	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Number of Levels	2
Number of Levels	Connected
Number of Positions	4
Stripping Length	8 mm
Terminal - Width [y]	6.2 mm
Termination Style	Screw
Type	Feed Through
Voltage - IEC	500 V
Voltage - UL	600 V
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	10 AWG
Wire Gauge or Range - mm² [Max]	4 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²

Terminal Block Tools & Accessories D-UKK 3-MSTB-5 08

Part	Current - IEC	Material Flammability Rating	Color	Voltage - IEC	Terminal - Width [y]	Current - UL	Number of Positions	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Levels	Number of Levels	Material - Insulation	Type	Voltage - UL	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Features	Termination Style	Stripping Length	For Use With/Related Products
Phoenix Contact 2791032	32 A	UL94 V-0	Gray	500 V	6.2 mm	30 A	4	26 AWG	10 AWG	2	Connected	Nylon Polyamide (PA)	Feed Through	600 V	0.2 mm²	4 mm²	Diode	Screw	8 mm
Phoenix Contact 2770891			Gray										End Plate Rail Type							CLIPLINE UKK Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Tools & Accessories D-UKK 3-MSTB-5 08
