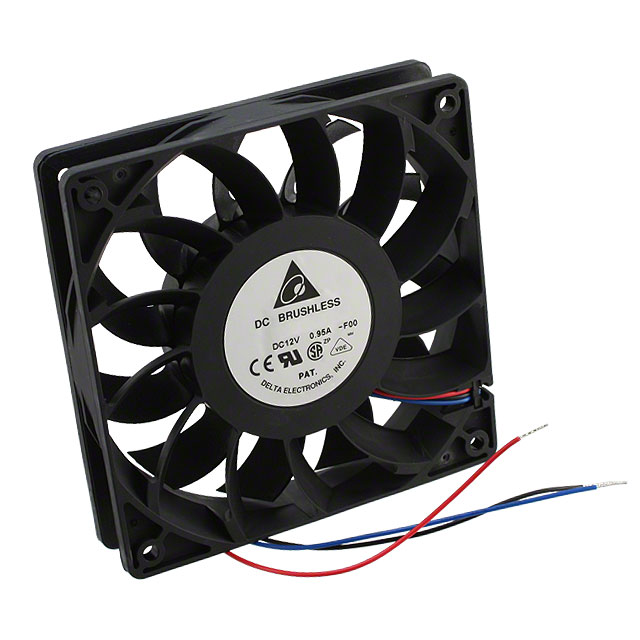

FFB1212VH-F00
ActiveDelta Electronics
FAN AXIAL 120X25.4MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
FFB1212VH-F00
ActiveDelta Electronics
FAN AXIAL 120X25.4MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FFB1212VH-F00 |
|---|---|
| Air Flow | 3.55 m³/min |
| Air Flow | 126.9 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.79 A |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach), Locked Rotor Protection |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 51.9 dB(A) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 9.48 W |
| RPM | 3400 RPM |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 120 mm |
| Static Pressure | 81.2 Pa |
| Static Pressure | 0.326 in H2O |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.2 VDC |
| Voltage Range [Min] | 7 V |
| Weight | 205.02 g |
| Weight | 0.452 lb |
| Width [y] | 25.4 mm |
FFB1212 Series
| Part | Bearing Type | Width [y] | Termination | Material - Frame | Approval Agency | Lifetime @ Temp. | Voltage - Rated | Size / Dimension [y] | Size / Dimension [x] | Noise | Air Flow | Air Flow | Static Pressure | Static Pressure | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Material - Blade | Fan Type | Voltage Range [Max] | Voltage Range [Min] | RPM | Current Rating (Amps) | Power (Watts) | Weight | Weight | Features | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | Ball | 38 mm | 2 Wire Leads | Plastic | CE CSA UL VDE | 70000 Hrs | 12 VDC | 120 mm | 120 mm | 53 dB | 4.25 m³/min | 151.9 CFM | 110.8 Pa | 0.445 in H2O | -10 °C | -10 °C | 60 °C | 60 °C | Plastic | Tubeaxial | 13.2 VDC | 7 V | 3200 RPM | 1 A | 12 W | 370.13 g | 0.816 lb | ||
Delta Electronics | Ball | 25.4 mm | 2 Wire Leads | Plastic | CE CSA UL VDE | 70000 Hrs | 12 VDC | 120 mm | 120 mm | 56.4 dB(A) | 4.21 m³/min | 150.3 CFM | 121.9 Pa | 0.489 in H2O | -10 °C | -10 °C | 60 °C | 60 °C | Plastic | Tubeaxial | 13.2 VDC | 7 V | 4000 RPM | 1.45 A | 17.4 W | 205.02 g | 0.452 lb | ||
Delta Electronics | Ball | 38 mm | 2 Wire Leads | Plastic | CE CSA UL VDE | 70000 Hrs | 12 VDC | 120 mm | 120 mm | 56.5 dB | 4.79 m³/min | 170.9 CFM | 140.2 Pa | 0.563 in H2O | -10 °C | -10 °C | 60 °C | 60 °C | Plastic | Tubeaxial | 13.2 VDC | 7 V | 3600 RPM | 1.5 A | 18 W | 370.13 g | 0.816 lb | ||
Delta Electronics | Ball | 38 mm | 3 Wire Leads | Plastic | CE CSA UL VDE | 70000 Hrs | 12 VDC | 120 mm | 120 mm | 53 dB | 4.25 m³/min | 151.9 CFM | 110.8 Pa | 0.445 in H2O | -10 °C | -10 °C | 60 °C | 60 °C | Plastic | Tubeaxial | 13.2 VDC | 7 V | 3200 RPM | 1 A | 12 W | 370.13 g | 0.816 lb | Locked Rotor Protection Speed Sensor (Tach) | |
Delta Electronics | Ball | 25.4 mm | 2 Wire Leads | Plastic | CE CSA UL VDE | 70000 Hrs | 12 VDC | 120 mm | 120 mm | 56.4 dB(A) | 4.21 m³/min | 150.3 CFM | 121.9 Pa | 0.489 in H2O | -10 °C | -10 °C | 60 °C | 60 °C | Plastic | Tubeaxial | 13.2 VDC | 7 V | 4000 RPM | 1.45 A | 17.4 W | 205.02 g | 0.452 lb | IP55 - Dust Protected Water Resistant | |
Delta Electronics | Ball | 25.4 mm | 3 Wire Leads | Plastic | CE CSA UL VDE | 70000 Hrs | 12 VDC | 120 mm | 120 mm | 56.4 dB(A) | 4.21 m³/min | 150.3 CFM | 121.9 Pa | 0.489 in H2O | -10 °C | -10 °C | 60 °C | 60 °C | Plastic | Tubeaxial | 13.2 VDC | 7 V | 4000 RPM | 1.45 A | 17.4 W | 205.02 g | 0.452 lb | Locked Rotor Protection Speed Sensor (Tach) | |
Delta Electronics | Ball | 25.4 mm | 3 Wire Leads | Plastic | CE CSA UL VDE | 70000 Hrs | 12 VDC | 120 mm | 120 mm | 51.9 dB(A) | 3.55 m³/min | 126.9 CFM | 81.2 Pa | 0.326 in H2O | -10 °C | -10 °C | 60 °C | 60 °C | Plastic | Tubeaxial | 13.2 VDC | 7 V | 3400 RPM | 0.79 A | 9.48 W | 205.02 g | 0.452 lb | Locked Rotor Protection Speed Sensor (Tach) | |
Delta Electronics | Ball | 25.4 mm | 3 Wire Leads | Plastic | CE CSA UL VDE | 70000 Hrs | 12 VDC | 120 mm | 120 mm | 49.7 dB(A) | 3.21 m³/min | 114.7 CFM | 71.7 Pa | 0.288 in H2O | -10 °C | -10 °C | 60 °C | 60 °C | Plastic | Tubeaxial | 13.2 VDC | 7 V | 3100 RPM | 650 mA | 7.8 W | 205.02 g | 0.452 lb | Locked Rotor Protection Speed Sensor (Tach) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 32.90 | |
| 10 | $ 30.60 | |||
| 25 | $ 27.54 | |||
| 54 | $ 25.25 | |||
| 108 | $ 23.72 | |||
| 270 | $ 20.66 | |||
Description
General part information
FFB1212 Series
Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 126.9 CFM (3.55m³/min) 3 Wire Leads
