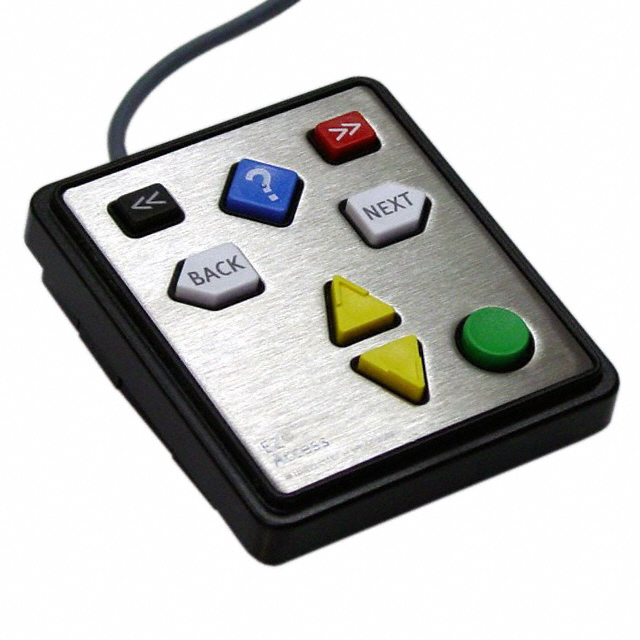

EZ08-222013 - EZ08

EZ08-222013

Obsolete
STORM INTERFACE

STORM INTERFACE NAV-PAD™ 8 BUTTON, USB

Deep-Dive with AI

Search across all available documentation for this part.

EZ08-222013 - EZ08

EZ08-222013

Obsolete
STORM INTERFACE

STORM INTERFACE NAV-PAD™ 8 BUTTON, USB

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

SpecificationEZ08-222013
Approval AgencyCE, cURus
FeaturesAnti-Vandal
IlluminationNon-Illuminated
Ingress ProtectionIP65 - Dust Tight, Water Resistant
Key ColorMultiple
Key TypePolymer
LegendArrows, Help Button
Legend ColorWhite, Black
Legend TypeFixed
Mounting TypePanel Mount, Front or Rear
Number of Keys [custom]8
Operating Temperature [Max]60 °C
Operating Temperature [Min]-20 C
Operational Life4000000 Cycles
Output TypeUSB
Panel Cutout Dimensions [x]109.5 mm
Panel Cutout Dimensions [y]95.5 mm
Switch TypeConductive Rubber
Termination StylePin Header

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
NewarkEach 1$ 182.63
5$ 171.68
10$ 166.20

Description

General part information

EZ08 Series

Storm Assistive Technology Products provide improved accessibility for those with impaired vision, restricted mobility or limited fine motor skills. Kiosks, ATMs, ticketing machines and voting terminals usually present information about available products and services via a visual display or touch screen. Nav-Pad™ is a highly tactile interface that improves accessibility, making navigation and selection of screen based menus possible for those with impaired vision or restricted movement. Storm Nav-Pad™ keypads are constructed to survive in exposed or hostile outdoor environments the keypads will withstand heavy use and abuse. They are sealed against the ingress of liquids and dust (IP65) to survive regular wash down and sanitation procedures. Nav-Pad™ keypads feature an integral USB interface to ensure hassle free, single cable connection to the host system. (Please note: The USB cable is supplied ‘hard-wired’). Nav-Pad™ was developed in association with the Trace Research & Development Center with support from the University of Wisconsin. Nav-Pad™ is a compliant tactile interface device for use as part of an ADA audible menu navigation system or EZ-Access® implementation.
