W28-6FU

Active

Vector Electronics

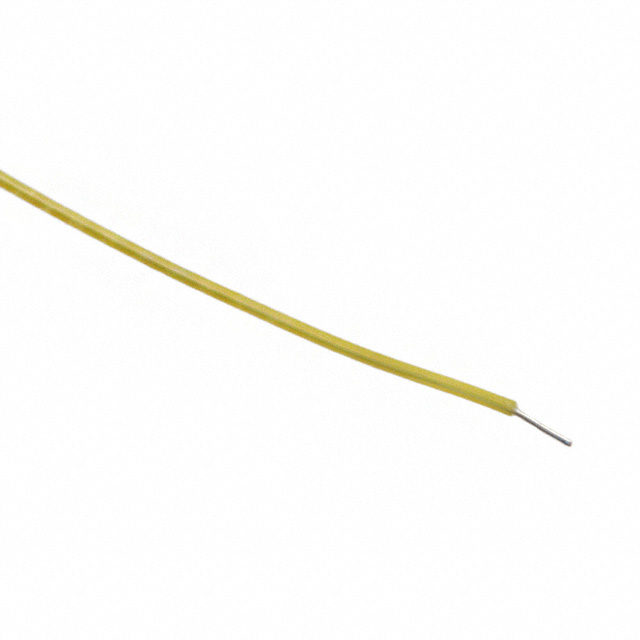

WIRE, WRAPPING WIRE, ETFE, YELLOW, 28 AWG, 150 FT

Search across all available documentation for this part.

Active

Vector Electronics

WIRE, WRAPPING WIRE, ETFE, YELLOW, 28 AWG, 150 FT

Technical Specifications

Parameters and characteristics for this part

Specification	W28-6FU

Conductor Diameter [diameter]	0.32 mm
Conductor Diameter [diameter]	0.013 in
Conductor Material	Copper, Bare
Conductor Plating	Silver
Jacket (Insulation) Diameter [diameter]	0.58 mm
Jacket (Insulation) Diameter [diameter]	0.023 in
Jacket (Insulation) Material	Ethylene Tetrafluoroethylene (ETFE)
Jacket (Insulation) Thickness	0.005 in
Jacket (Insulation) Thickness	0.13 mm
Jacket Color	Yellow
Length	45.72 m
Length	150 ft
Operating Temperature	150 °C
Ratings	UL Style 1516/1523
Wire Gauge	28 AWG

Part	Jacket Color	Jacket (Insulation) Material	Conductor Material	Conductor Plating	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Diameter [diameter]	Conductor Diameter [diameter]	Ratings	Wire Gauge	Length	Length
Vector Electronics W28-6FU	Yellow	Ethylene Tetrafluoroethylene (ETFE)	Copper Bare	Silver	0.005 in	0.13 mm	150 °C	0.58 mm	0.023 in	0.32 mm	0.013 in	UL Style 1516/1523	28 AWG	45.72 m	150 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Wire Wrap 28 AWG Yellow Ethylene Tetrafluoroethylene (ETFE) 150' (45.72m)
