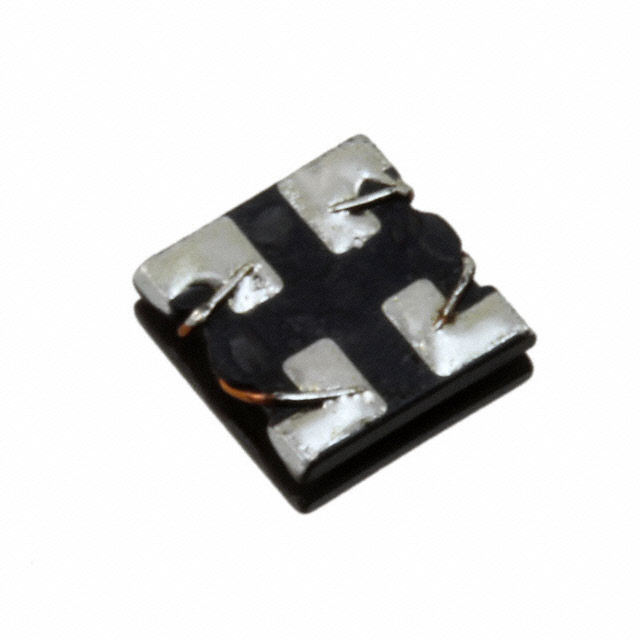

DLW44SN302SK2L
UnknownMurata Power Solutions Inc.
CMC 1.1A 2LN 2.2K OHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DLW44SN302SK2L
UnknownMurata Power Solutions Inc.
CMC 1.1A 2LN 2.2K OHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DLW44SN302SK2L |
|---|---|
| Current Rating (Max) [Max] | 1.1 A |
| DC Resistance (DCR) (Max) [Max] | 168 mOhm |
| Filter Type | Power Line |
| Height (Max) [Max] | 1.5 mm |
| Height (Max) [Max] | 0.059 in |
| Impedance @ Frequency | 2.2 kOhms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4 Lead |
| Package / Case | Horizontal |
| Size / Dimension [diameter] | 4 mm |
| Size / Dimension [diameter] | 0.157 in |
| Size / Dimension [y] | 4 mm |
| Size / Dimension [y] | 0.157 in |
| Voltage Rating - DC | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.83 | |
| Digi-Reel® | 1 | $ 1.83 | ||
| Tape & Reel (TR) | 1000 | $ 0.91 | ||
| 3000 | $ 0.88 | |||
| 5000 | $ 0.85 | |||
| 10000 | $ 0.81 | |||
Description
General part information
DLW44SN Series
2 Line Common Mode Choke Surface Mount 2.2 kOhms @ 100 MHz 1.1A DCR 168mOhm
