132289-14

Active

Amphenol RF

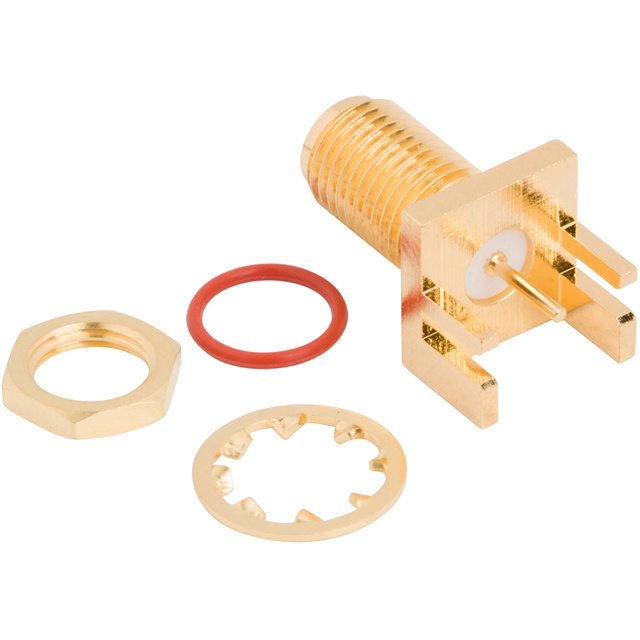

SMA PCB END LAUNCH STRAIGHT JACK BULKHEAD 50 OHM O-RING

Search across all available documentation for this part.

Active

Amphenol RF

SMA PCB END LAUNCH STRAIGHT JACK BULKHEAD 50 OHM O-RING

Technical Specifications

Parameters and characteristics for this part

Specification	132289-14

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Panel Mount, End Launch, Board Edge
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Center Contact Material	Impedance	Body Material	Connector Type	Frequency - Max [Max]	Body Finish	Mating Cycles	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Center Contact Plating	Contact Termination	Shield Termination	Mounting Type	Mounting Feature	Connector Style	Housing Color
Amphenol RF 132289-14	Beryllium Copper	50 Ohms	Brass	Female Socket Receptacle	18 GHz	Gold	500	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	1	Gold	Solder	Solder	Board Edge End Launch Panel Mount	Bulkhead - Front Side Nut	SMA	Gold
