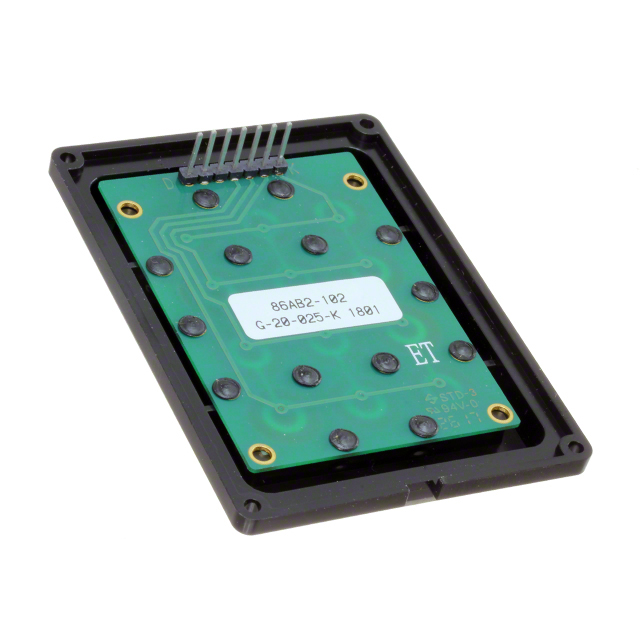

86AB2-102
ActiveGrayhill Inc.
SWITCH KEYPAD 12KEY 0.01A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
86AB2-102
ActiveGrayhill Inc.
SWITCH KEYPAD 12KEY 0.01A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 86AB2-102 |
|---|---|
| Contact Rating @ Voltage | 24 VDC, 0.01 A |
| Illumination | Non-Illuminated |
| Ingress Protection | IP40 |
| Key Color | White |
| Key Type | Polymer |
| Legend | Telephone Format |
| Legend Color | Black |
| Legend Type | Fixed |
| Matrix (Columns x Rows) [custom] | 4 |
| Matrix (Columns x Rows) [custom] | 3 |
| Mounting Type | Panel Mount, Front or Rear |
| Number of Keys | 12 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Operational Life | 3000000 Cycles |
| Output Type | 1.81 mOhm |
| Switch Type | Snap Dome |
| Termination Style | Pin Header |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 44.23 | |
| 10 | $ 41.63 | |||
| 25 | $ 40.33 | |||
| 50 | $ 37.73 | |||
| 100 | $ 35.64 | |||
| 250 | $ 34.60 | |||
Description
General part information
86AB2 Series
Keypad Switch 12 Polymer Keys Snap Dome Contacts Matrix Output Non-Illuminated 0.01A @ 24VDC
