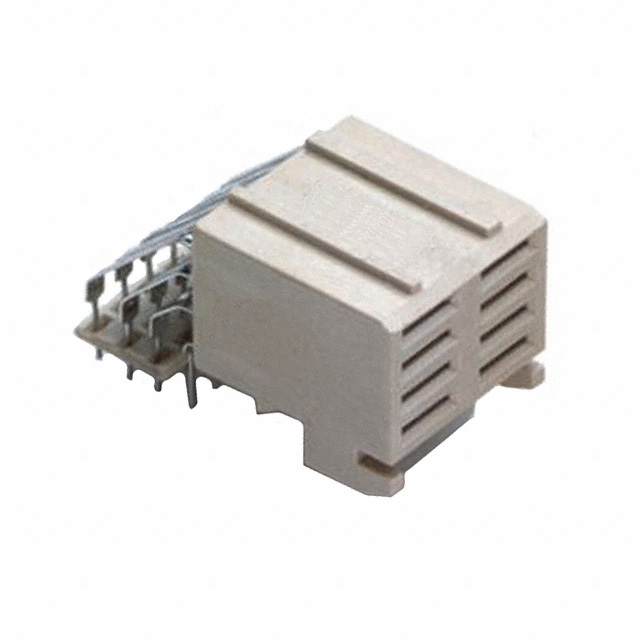

MP2-SP08-41M1-KR

Active

3M (TC)

CONN BACKPLANE POWER F 8 POS 2MM SOLDER RA THRU-HOLE BOX

Search across all available documentation for this part.

Active

3M (TC)

CONN BACKPLANE POWER F 8 POS 2MM SOLDER RA THRU-HOLE BOX

Technical Specifications

Parameters and characteristics for this part

Specification	MP2-SP08-41M1-KR

Color	Beige
Connector Style	Blade Power
Connector Type	Receptacle, Female Blade Sockets
Connector Usage	Backplane
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Layout, Typical	8 Power
Features	Board Guide, Board Lock, Spacer
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	8
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Termination	Solder

Part	Termination	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Number of Positions Loaded	Number of Positions	Connector Type	Connector Usage	Color	Features	Contact Finish	Contact Layout, Typical	Material Flammability Rating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
3M (TC) MP2-SP08-41M1-KR	Solder	0.76 Ám	30 Áin	Blade Power	All	8	Receptacle Female Blade Sockets	Backplane	Beige	Board Guide Board Lock Spacer	Gold	8 Power	UL94 V-0	Board Edge Right Angle Through Hole	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1008	$ 3.64

General part information

8 Connector Receptacle, Female Blade Sockets Board Edge, Through Hole, Right Angle Beige Blade Power
