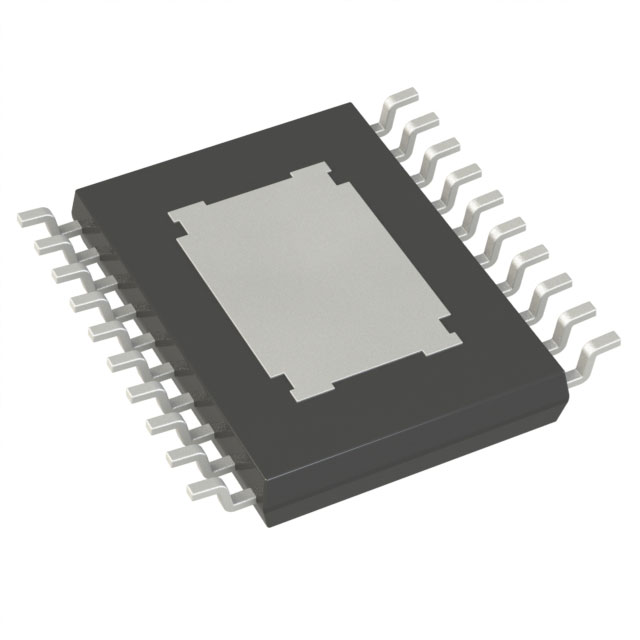

LTC3769EFE#TRPBF
ActiveDC/DC CNTRLR SINGLE-OUT STEP UP 900KHZ 20-PIN TSSOP EP T/R
Deep-Dive with AI
Search across all available documentation for this part.
LTC3769EFE#TRPBF
ActiveDC/DC CNTRLR SINGLE-OUT STEP UP 900KHZ 20-PIN TSSOP EP T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LTC3769EFE#TRPBF |
|---|---|
| Clock Sync | False |
| Control Features | Current Limit, Power Good, Soft Start, Frequency Control, Enable |
| Duty Cycle (Max) [Max] | 96 % |
| Frequency - Switching [Max] | 760 kHz |
| Frequency - Switching [Min] | 105 kHz |
| Function | Step-Up, Step-Up/Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Phases | 1 |
| Output Type | Transistor Driver |
| Package / Case [custom] | 4.4 mm, 0.173 in |
| Package / Case [custom] | Exposed Pad |
| Package / Case [custom] | 20-TSSOP |
| Supplier Device Package | 20-TSSOP-EP |
| Synchronous Rectifier | True |
| Topology | SEPIC, Boost |
| Voltage - Supply (Vcc/Vdd) [Max] | 60 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 4.5 V |
LTC3769 Series
60V Low IQSynchronous Boost Controller with PassThru
| Part | Clock Sync | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Output Phases | Function | Topology | Mounting Type | Supplier Device Package | Number of Outputs | Output Type | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case [custom] | Package / Case [custom] | Package / Case [custom] | Duty Cycle (Max) [Max] | Control Features | Synchronous Rectifier | Frequency - Switching [Max] | Frequency - Switching [Min] | Output Configuration | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices | 4.5 V | 60 V | 1 | Step-Up Step-Up/Step-Down | Boost SEPIC | Surface Mount | 20-TSSOP-EP | 1 | Transistor Driver | -40 °C | 125 ¯C | 0.173 in 4.4 mm | Exposed Pad | 20-TSSOP | 96 % | Current Limit Enable Frequency Control Power Good Soft Start | 760 kHz | 105 kHz | Positive | |||
Analog Devices | 4.5 V | 60 V | 1 | Step-Up Step-Up/Step-Down | Boost SEPIC | Surface Mount | 24-QFN (4x4) | 1 | Transistor Driver | -40 °C | 150 °C | 96 % | Current Limit Enable Frequency Control Power Good Soft Start | 760 kHz | 105 kHz | Positive | 24-WFQFN Exposed Pad | |||||
Analog Devices | 4.5 V | 60 V | 1 | Step-Up Step-Up/Step-Down | Boost SEPIC | Surface Mount | 20-TSSOP-EP | 1 | Transistor Driver | -40 °C | 125 ¯C | 0.173 in 4.4 mm | Exposed Pad | 20-TSSOP | 96 % | Current Limit Enable Frequency Control Power Good Soft Start | 760 kHz | 105 kHz | Positive | |||
Analog Devices | 4.5 V | 60 V | 1 | Step-Up Step-Up/Step-Down | Boost SEPIC | Surface Mount | 20-TSSOP-EP | 1 | Transistor Driver | -40 °C | 150 °C | 0.173 in 4.4 mm | Exposed Pad | 20-TSSOP | 96 % | Current Limit Enable Frequency Control Power Good Soft Start | 760 kHz | 105 kHz | Positive | |||
Analog Devices | 4.5 V | 60 V | 1 | Step-Up Step-Up/Step-Down | Boost SEPIC | Surface Mount | 24-QFN (4x4) | 1 | Transistor Driver | -40 °C | 125 ¯C | 96 % | Current Limit Enable Frequency Control Power Good Soft Start | 760 kHz | 105 kHz | Positive | 24-WFQFN Exposed Pad | |||||
Analog Devices | 4.5 V | 60 V | 1 | Step-Up Step-Up/Step-Down | Boost SEPIC | Surface Mount | 24-QFN (4x4) | 1 | Transistor Driver | -55 °C | 150 °C | 96 % | Current Limit Enable Frequency Control Power Good Soft Start | 760 kHz | 105 kHz | Positive | 24-WFQFN Exposed Pad | |||||
Analog Devices | 4.5 V | 60 V | 1 | Step-Up Step-Up/Step-Down | Boost SEPIC | Surface Mount | 20-TSSOP-EP | 1 | Transistor Driver | -40 °C | 150 °C | 0.173 in 4.4 mm | Exposed Pad | 20-TSSOP | 96 % | Current Limit Enable Frequency Control Power Good Soft Start | 760 kHz | 105 kHz | Positive | |||
Analog Devices | 4.5 V | 60 V | 1 | Step-Up Step-Up/Step-Down | Boost SEPIC | Surface Mount | 20-TSSOP-EP | 1 | Transistor Driver | -40 °C | 125 ¯C | 0.173 in 4.4 mm | Exposed Pad | 20-TSSOP | 96 % | Current Limit Enable Frequency Control Power Good Soft Start | 760 kHz | 105 kHz | Positive |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 9.58 | |
| 10 | $ 6.49 | |||
| 25 | $ 5.68 | |||
| 100 | $ 4.77 | |||
| 250 | $ 4.33 | |||
| 500 | $ 4.62 | |||
| 1000 | $ 4.40 | |||
| Digi-Reel® | 1 | $ 9.58 | ||
| 10 | $ 6.49 | |||
| 25 | $ 5.68 | |||
| 100 | $ 4.77 | |||
| 250 | $ 4.33 | |||
| 500 | $ 4.62 | |||
| 1000 | $ 4.40 | |||
| Tape & Reel (TR) | 2500 | $ 4.33 | ||
Description
General part information
LTC3769 Series
LTC3769 is a high performance single output synchronous boost converter controller that drives an all N-channel power MOSFET stage. Synchronous rectification increases efficiency, reduces power losses and eases thermal requirements, simplifying high power boost applications. The 28μA no-load quiescent current extends operating run time in battery-powered systems.A 4.5V to 60V input supply range encompasses a wide range of system architectures and battery chemistries. When biased from the output of the boost converter or another auxiliary supply, the LTC3769 can operate from an input supply as low as 2.3V after start-up. The operating frequency can be set within a 50kHz to 900kHz range or synchronized to an external clock using the internal PLL.The SS pin ramps the output voltage during start-up. The PLLIN/MODE pin selects Burst Mode®operation, pulse-skipping mode or forced continuous mode at light loads.APPLICATIONSIndustrialAutomotiveMedicalMilitary
