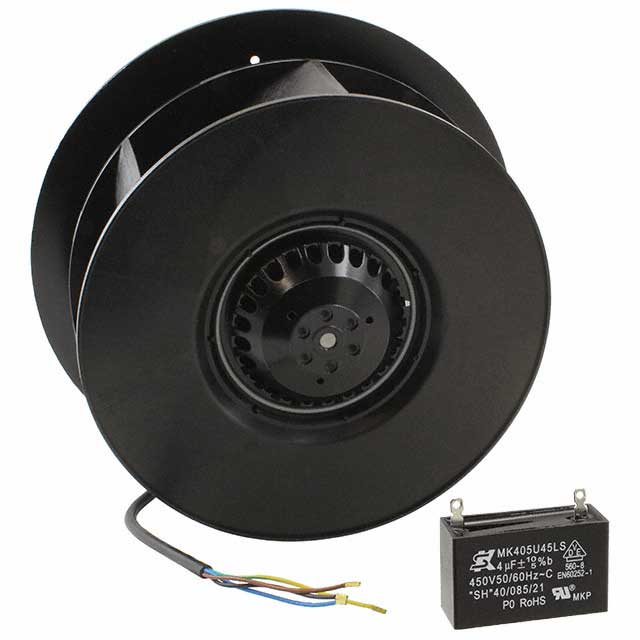

UF190APA23-H1C2F

Active

Mechatronics Bearing Group

IMPELLER 190X70MM 230VAC RING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBackward Curved Impellers Datasheet +1

UF190APA23-H1C2F

Active

Mechatronics Bearing Group

IMPELLER 190X70MM 230VAC RING

Deep-Dive with AI

DocumentsBackward Curved Impellers Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UF190APA23-H1C2F

Air Flow	6.92 m³/min
Air Flow	247 CFM
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Fan Type	Motorized Impellers
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor
Material - Blade	Polyamide (PA), Nylon
Material - Frame	Aluminum
Noise	63 dB
Operating Temperature [Max]	50 °C
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	72 W
RPM	2700 RPM
Size / Dimension	Round
Size / Dimension [diameter]	190 mm
Static Pressure	1.5 in H2O
Static Pressure	373.6 Pa
Termination	4 Wire Leads
Voltage - Rated	230 VAC
Weight	3.2 lbs
Weight	1.5 kg
Width [y]	70 mm

UF190 Series

Part	Noise	Bearing Type	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Air Flow	Air Flow	Voltage - Rated	Material - Frame	Size / Dimension	Size / Dimension [diameter]	Fan Type	Weight	Weight	Approval Agency	Material - Blade	Width [y]	Power (Watts)	Features	Static Pressure	Static Pressure	RPM	Termination
Mechatronics Bearing Group UF190APA12-H1C2A	63 dB	Ball	50 °C	-40 °C	-40 °C	50 °C	0.54 A	10.36 mł/min	370 CFM	115 VAC	Aluminum	Round	190 mm	Motorized Impellers	1.2 kg	2.7 lbs	CE cUL TUV UL	Nylon Polyamide (PA)	70 mm	65 W	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	298.9 Pa	1.2 in H2O	2700 RPM	4 Wire Leads
Mechatronics Bearing Group UF190APA12-H1C2A-B1	63 dB	Ball	50 °C	-40 °C	-40 °C	50 °C	0.54 A	10.36 mł/min	370 CFM	115 VAC	Aluminum	Round	190 mm	Motorized Impellers	1.2 kg	2.7 lbs	CE cUL TUV UL	Nylon Polyamide (PA)	70 mm	65 W	Permanent Split Capacitor Motor Speed Sensor (Tach) Thermal Overload Protector (TOP)	298.9 Pa	1.2 in H2O	2700 RPM	4 Wire Leads
Mechatronics Bearing Group UF190APA12-H1C2F	63 dB	Ball	50 °C	-40 °C	-40 °C	50 °C	0.54 A	6.92 m³/min	247 CFM	115 VAC	Aluminum	Round	190 mm	Motorized Impellers	1.5 kg	3.2 lbs	CE cUL TUV UL	Nylon Polyamide (PA)	70 mm	65 W	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	373.6 Pa	1.5 in H2O	2700 RPM	4 Wire Leads
Mechatronics Bearing Group UF190APA23-H1C2F	63 dB	Ball	50 °C	-40 °C	-40 °C	50 °C		6.92 m³/min	247 CFM	230 VAC	Aluminum	Round	190 mm	Motorized Impellers	1.5 kg	3.2 lbs	CE cUL TUV UL	Nylon Polyamide (PA)	70 mm	72 W	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	373.6 Pa	1.5 in H2O	2700 RPM	4 Wire Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 97.11

Description

General part information

UF190 Series

Fan Motorized Impellers 230VAC Round - 190mm Dia Ball 247.0 CFM (6.92m³/min) 4 Wire Leads

Documents

Technical documentation and resources

Backward Curved Impellers

Datasheet

AC Axial Part Numbering Guide

Datasheet
