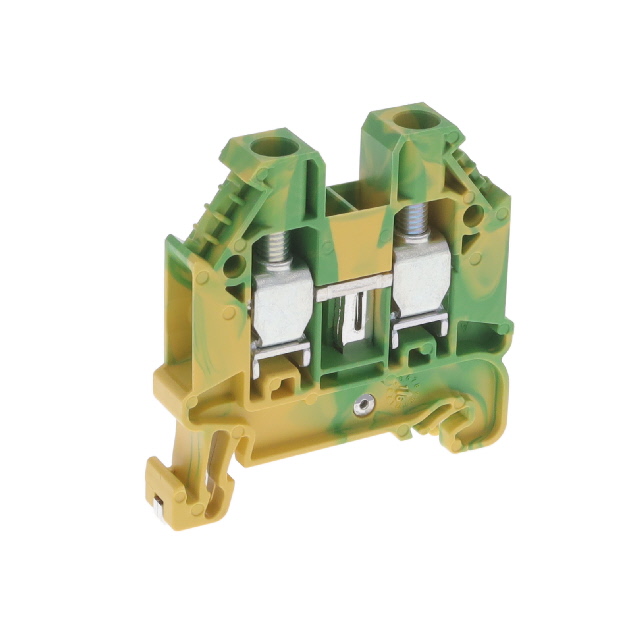

XW5G-S6.0-1.1-1
ActiveOmron Electronics Inc-EMC Div
GROUNDTB SCREW 6MM 1:1 1TIER
Deep-Dive with AI
Search across all available documentation for this part.
XW5G-S6.0-1.1-1
ActiveOmron Electronics Inc-EMC Div
GROUNDTB SCREW 6MM 1:1 1TIER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XW5G-S6.0-1.1-1 |
|---|---|
| Color | Green, Yellow |
| Material - Insulation | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length | 11 mm |
| Terminal - Width [y] | 8 mm |
| Termination Style | Screw |
| Type | Ground, Earth |
| Voltage - IEC | 1 kV |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG [Max] | 24 AWG |
| Wire Gauge or Range - AWG [Min] | 8 AWG |
| Wire Gauge or Range - mm² [Max] | 10 mm² |
| Wire Gauge or Range - mm² [Min] | 0.2 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.27 | |
| 10 | $ 3.25 | |||
| 25 | $ 3.05 | |||
| 50 | $ 2.71 | |||
| 100 | $ 2.65 | |||
| 300 | $ 2.59 | |||
Description
General part information
XW5G-S6 Series
Terminal Block Connector 2 Position Ground, Earth Green, Yellow 8-24 AWG
Documents
Technical documentation and resources
No documents available
