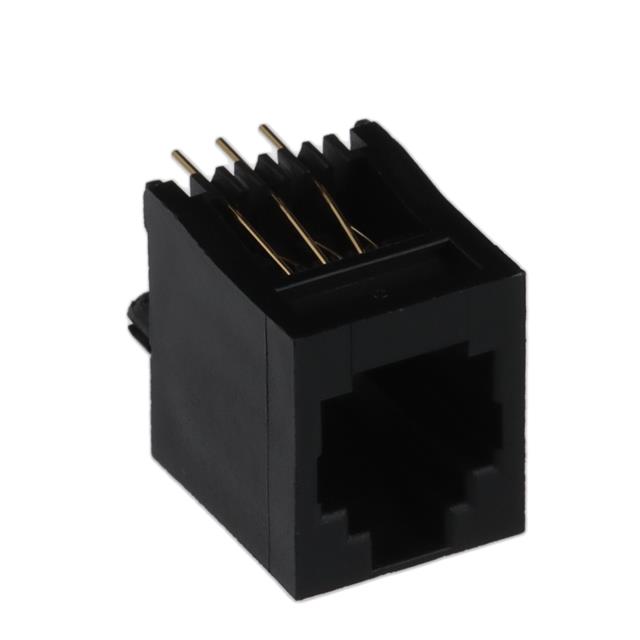

A-2014-1-4-N-T-R

Active

Assmann WSW Components

UNSHIELDED 1 GOLD PHOSPHOR BRONZE WITHOUT LED -40℃~+85℃ PLUGIN ETHERNET CONNECTORS / MODULAR CONNECTORS (RJ45 RJ11) ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A-2014-1-4-N-T-R

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.152 Ám
Contact Finish Thickness	6 Áin
Contact Material	Phosphor Bronze
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	6p6c (RJ11, RJ12, RJ14, RJ25)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Vertical
Shielding	Unshielded
Tab Direction	User Selectable
Termination	Solder

A-2014 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Finish	Orientation	Number of Rows	LED Color	Number of Ports	Shielding	Termination	Tab Direction	Mounting Type	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Contacts	Housing Material	Features
Assmann WSW Components A-2014-2S-1-N	85 °C	-40 °C	Phosphor Bronze	Gold	Vertical	1	Does Not Contain LED	1	Shielded	Solder	User Selectable	Through Hole	Jack	15 µin	0.38 µm	8p8c (RJ45 Ethernet)	Polyester
Assmann WSW Components A-2014-1-4-N-T-R	85 °C	-40 °C	Phosphor Bronze	Gold	Vertical	1	Does Not Contain LED	1	Unshielded	Solder	User Selectable	Through Hole	Jack	6 Áin	0.152 Ám	6p6c (RJ11 RJ12 RJ14 RJ25)	Polybutylene Terephthalate (PBT) Glass Filled
Assmann WSW Components A-2014-3-1-N-T	85 °C	-40 °C	Phosphor Bronze	Gold	Vertical	1	Does Not Contain LED	1	Unshielded	Solder	User Selectable	Through Hole	Jack	15 µin	0.38 µm	4p4c
Assmann WSW Components A-2014-1-1-SMT-N	85 °C	-40 °C	Phosphor Bronze	Gold	Vertical	1	Does Not Contain LED	1	Unshielded	Solder	User Selectable	Surface Mount	Jack	15 µin	0.38 µm	6p6c (RJ11 RJ12 RJ14 RJ25)		Solder Retention
Assmann WSW Components A-2014-1-2-SMT-N	85 °C	-40 °C	Phosphor Bronze	Gold	Vertical	1	Does Not Contain LED	1	Unshielded	Solder	User Selectable	Surface Mount	Jack	30 Áin	0.76 Ám	6p6c (RJ11 RJ12 RJ14 RJ25)		Solder Retention
Assmann WSW Components A-2014-3-1	85 °C	-40 °C	Phosphor Bronze	Gold	Vertical	1	Does Not Contain LED	1	Unshielded	Solder	User Selectable	Through Hole	Jack	15 µin	0.38 µm	4p4c	Polyester	Board Lock Panel Stops
Assmann WSW Components A-2014-1-2-N-T	85 °C	-40 °C	Phosphor Bronze	Gold	Vertical	1	Does Not Contain LED	1	Unshielded	Solder	User Selectable	Through Hole	Jack	30 Áin	0.76 Ám	6p6c (RJ11 RJ12 RJ14 RJ25)
Assmann WSW Components A-2014-1-2	85 °C	-40 °C	Phosphor Bronze	Gold	Vertical	1	Does Not Contain LED	1	Unshielded	Solder	User Selectable	Through Hole	Jack	30 Áin	0.76 Ám	6p6c (RJ11 RJ12 RJ14 RJ25)		Board Lock Panel Stops
Assmann WSW Components A-2014-1-3	85 °C	-40 °C	Phosphor Bronze	Gold	Vertical	1	Does Not Contain LED	1	Unshielded	Solder	User Selectable	Through Hole	Jack	50 µin	1.27 µm	6p6c (RJ11 RJ12 RJ14 RJ25)		Board Lock Panel Stops
Assmann WSW Components A-2014-2S-4-N-R	85 °C	-40 °C	Phosphor Bronze	Gold	Vertical	1	Does Not Contain LED	1	Shielded	Solder	User Selectable	Through Hole	Jack	6 Áin	0.152 Ám	8p8c (RJ45 Ethernet)	Polybutylene Terephthalate (PBT) Glass Filled

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.69
		10	$ 0.60
		25	$ 0.55
		40	$ 0.51
		110	$ 0.49
		330	$ 0.45
		440	$ 0.43
		990	$ 0.35
		2420	$ 0.32
LCSC	Piece	1	$ 0.99
		200	$ 0.38
		500	$ 0.37
		1000	$ 0.36

Description

General part information

A-2014 Series

Jack Modular Connector 6p6c (RJ11, RJ12, RJ14, RJ25) Vertical Unshielded
