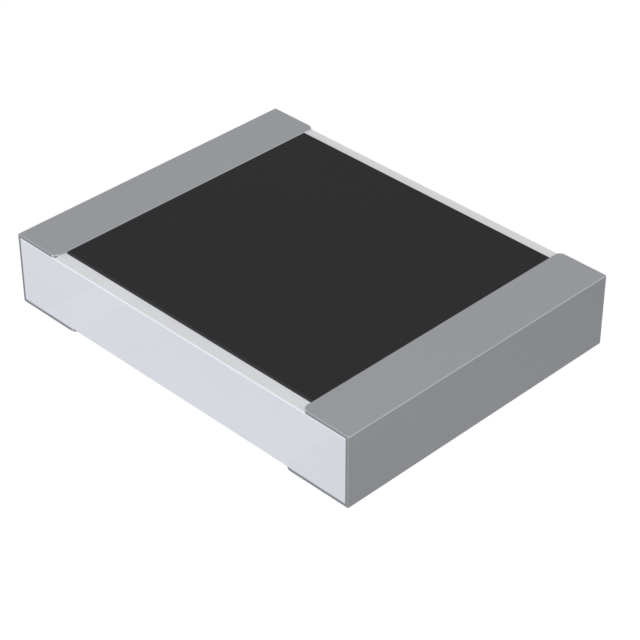

TLR2H10ER005FTDG
ObsoleteTE Connectivity Passive Product
RES 0.005 OHM 1% 1W 2010
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TLR2H10ER005FTDG
ObsoleteTE Connectivity Passive Product
RES 0.005 OHM 1% 1W 2010
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TLR2H10ER005FTDG |
|---|---|
| Features | Current Sense |
| Height - Seated (Max) [Max] [z] | 0.6 mm |
| Height - Seated (Max) [Max] [z] | 0.024 in |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 170 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 2010 (5025 Metric) |
| Power (Watts) | 1 W |
| Resistance | 5 mOhms |
| Size / Dimension [x] | 0.201 in |
| Size / Dimension [x] | 5.1 mm |
| Size / Dimension [y] | 2.54 mm |
| Size / Dimension [y] | 0.1 in |
| Supplier Device Package | 2010 |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TLR2H10 Series
5 mOhms ±1% 1W Chip Resistor 2010 (5025 Metric) Current Sense Metal Foil
