T4052227004-001

Active

TE Connectivity Raychem Cable Protection

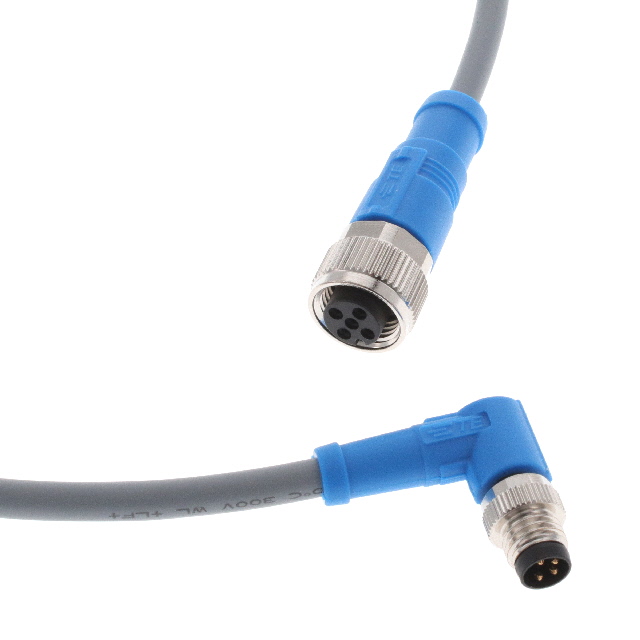

CBL 4POS RCPT RA TO PLUG 1.64'

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CBL 4POS RCPT RA TO PLUG 1.64'

Technical Specifications

Parameters and characteristics for this part

Specification	T4052227004-001

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M8
1st Connector Type	Receptacle, Right Angle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	5
2nd Connector Number of Positions Loaded	4 positions
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Plug
Assembly Configuration	Standard
Cable Material	Polyurethane (PUR)
Cable Type	Round
Color	Gray
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	1.64 ft
Length [x]	500 mm
Shielding	Unshielded
Usage	Industrial Environments

Part	2nd Connector Shell Size - Insert	Color	Cable Material	1st Connector Shell Size - Insert	Assembly Configuration	1st Connector Gender	2nd Connector Type	Usage	2nd Connector Gender	Length [x]	Length [x]	1st Connector Number of Positions Loaded	Ingress Protection	1st Connector Mounting Type	1st Connector Number of Positions	2nd Connector Number of Positions Loaded	1st Connector Type	2nd Connector Mounting Type	1st Connector Orientation	2nd Connector Number of Positions	Cable Type	Shielding	2nd Connector Number of Positions Loaded
TE Connectivity Raychem Cable Protection T4052217004-001	M12	Black	Polyvinyl Chloride (PVC)	M8	Standard	Male Pins	Plug	Industrial Environments	Female Sockets	1.64 ft	500 mm	All	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	4	4 positions	Receptacle Right Angle	Free Hanging (In-Line)	A	5	Round	Unshielded
TE Connectivity Raychem Cable Protection T4052227004-001	M12	Gray	Polyurethane (PUR)	M8	Standard	Male Pins	Plug	Industrial Environments	Female Sockets	1.64 ft	500 mm	All	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	4	4 positions	Receptacle Right Angle	Free Hanging (In-Line)	A	5	Round	Unshielded
TE Connectivity Raychem Cable Protection T4052224003-001	M8	Gray	Polyurethane (PUR)	M8	Standard	Male Pins	Plug Right Angle	Industrial Environments	Female Sockets	1.64 ft	500 mm	All	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	3		Receptacle Right Angle	Free Hanging (In-Line)	A	3	Round	Unshielded	All

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Unshielded 1.64' (500.00mm)
