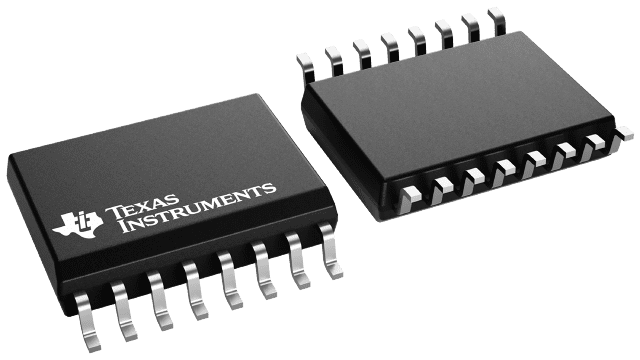

UCC12051QDVERQ1
ActiveAUTOMOTIVE, 500-MW, 5-KVRMS ISOLATED DC/DC MODULE WITH INTEGRATED TRANSFORMER
Deep-Dive with AI
Search across all available documentation for this part.
UCC12051QDVERQ1
ActiveAUTOMOTIVE, 500-MW, 5-KVRMS ISOLATED DC/DC MODULE WITH INTEGRATED TRANSFORMER
Technical Specifications
Parameters and characteristics for this part
| Specification | UCC12051QDVERQ1 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CQC, VDE, UL |
| Control Features | Active High, Enable |
| Current - Output (Max) | 140 mA, 80 mA |
| Efficiency | 60 % |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-SOIC |
| Package / Case [x] | 0.295 in |
| Package / Case [y] | 7.5 mm |
| Power (Watts) | 0.5 W |
| Qualification | AEC-Q100 |
| Size / Dimension | 0.41 in |
| Standard Number | 60950-1, 62368-1 |
| Supplier Device Package | 16-SOIC |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 5000 V |
| Voltage - Output 1 | 3.3 V, 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.45 | |
| 10 | $ 6.73 | |||
| 25 | $ 6.42 | |||
| 100 | $ 5.57 | |||
| 250 | $ 5.32 | |||
| 500 | $ 4.85 | |||
| 1000 | $ 4.23 | |||
| Digi-Reel® | 1 | $ 7.45 | ||
| 10 | $ 6.73 | |||
| 25 | $ 6.42 | |||
| 100 | $ 5.57 | |||
| 250 | $ 5.32 | |||
| 500 | $ 4.85 | |||
| 1000 | $ 4.23 | |||
| Tape & Reel (TR) | 2000 | $ 4.07 | ||
| Texas Instruments | LARGE T&R | 1 | $ 5.70 | |
| 100 | $ 4.65 | |||
| 250 | $ 3.65 | |||
| 1000 | $ 3.10 | |||
Description
General part information
UCC12051-Q1 Series
UCC12051-Q1 is an automotive qualified DC/DC power module with 5-kVRMSisolation rating designed to provide efficient, isolated power to isolated circuits that require a bias supply with a well-regulated output voltage. The device integrates a transformer and DC/DC controller with a proprietary architecture to provide 500 mW (typical) of isolated power with low EMI.
The UCC12051-Q1 integrates protection features for increased system robustness. The device also has an enable pin, synchronization capability, and regulated 5-V or 3.3-V output options with headroom. The UCC12051-Q1 is a low-profile, miniaturized solution offered in a wide-body SOIC package with 2.65-mm height (typical).
UCC12051-Q1 is an automotive qualified DC/DC power module with 5-kVRMSisolation rating designed to provide efficient, isolated power to isolated circuits that require a bias supply with a well-regulated output voltage. The device integrates a transformer and DC/DC controller with a proprietary architecture to provide 500 mW (typical) of isolated power with low EMI.
