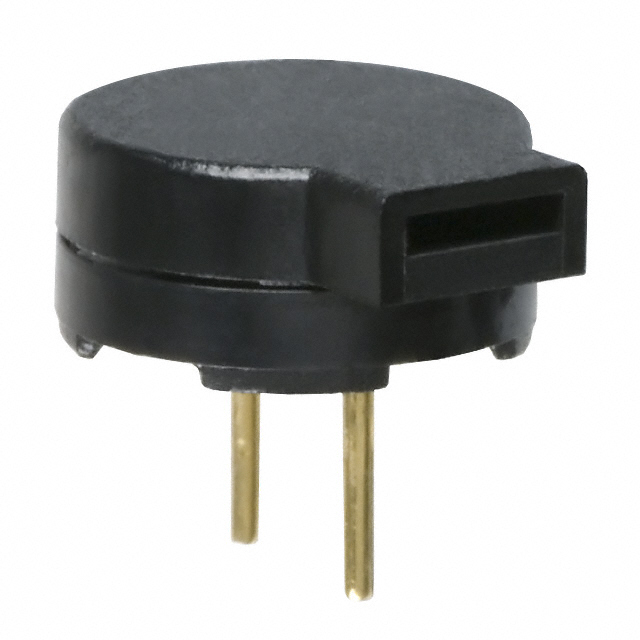

CST-931RP-A

Active

CUI Devices

BUZZER MAGNETIC 3V 9.00MM TH

Search across all available documentation for this part.

Active

CUI Devices

BUZZER MAGNETIC 3V 9.00MM TH

Technical Specifications

Parameters and characteristics for this part

Specification	CST-931RP-A

Current - Supply	80 mA
Driver Circuitry	Externally Driven, Transducer
Frequency	2.73 kHz
Height - Seated (Max)	4.5 mm
Height - Seated (Max) [Max]	0.177 "
Input Type	Zero-Peak Signal
Mounting Type	Through Hole
Operating Mode	Single Tone
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Port Location	Side
Size / Dimension [diameter]	9 mm
Size / Dimension [diameter]	0.354 in
Sound Pressure Level (SPL)	85 dB
Technology	Magnetic
Termination	PC Pins
Voltage - Rated	3 VDC
Voltage Range [Max]	4 V
Voltage Range [Min]	2 V

Part	Operating Mode	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Driver Circuitry	Termination	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Input Type	Voltage Range [Min]	Voltage Range [Max]	Port Location	Height - Seated (Max) [Max]	Height - Seated (Max)	Voltage - Rated	Frequency	Current - Supply	Sound Pressure Level (SPL)
CUI Devices CST-931RP-A	Single Tone	Through Hole	9 mm	0.354 in	Externally Driven Transducer	PC Pins	Magnetic	-20 C	60 °C	Zero-Peak Signal	2 V	4 V	Side	0.177 "	4.5 mm	3 VDC	2.73 kHz	80 mA	85 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers Transducer, Externally Driven Magnetic 3 V 80mA 2.73kHz 85dB @ 3V, 10cm Through Hole PC Pins
