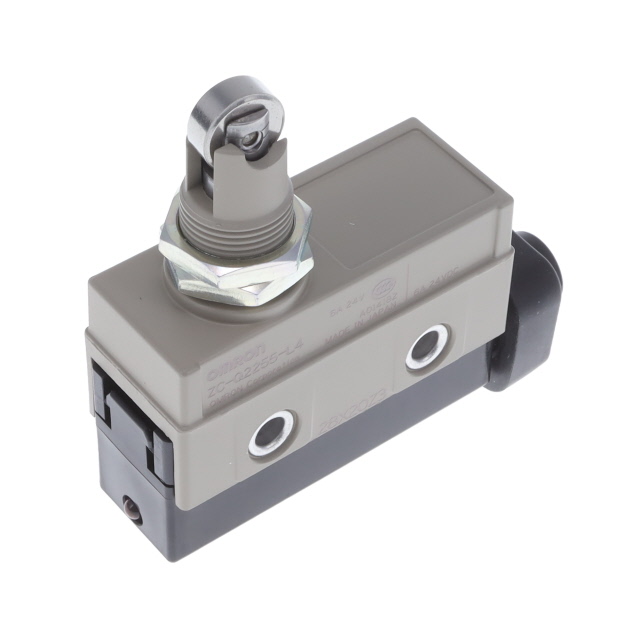

ZC-Q2255-L4

Active

Omron Electronics Inc-EMC Div

SWITCH LIMIT ROLL PLNGR SPDT 10A

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH LIMIT ROLL PLNGR SPDT 10A

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Type	Operating Force	Circuit	Pretravel	Pretravel	Features	Operating Position	Operating Position	Ingress Protection	Overtravel	Overtravel	Voltage Rating - AC	Differential Travel	Differential Travel	Electrical Life	Mechanical Life	Switch Function	Termination Style	Release Force	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]
Omron Electronics Inc-EMC Div ZC-Q2255-MD VCT 5M	Roller Plunger	1200 gf	SPDT	1.5 mm	0.06 in	Cable Length 5m	1.866 in	47.4 mm	IP67 - Dust Tight Waterproof	3 mm	0.118 in	125 V	0.008 in	0.2 mm	500000 Cycles	10000000 Cycles	On-Mom	Cable Leads	500 gf	30 V	80 C	-10 °C
Omron Electronics Inc-EMC Div ZC-Q2255-L4	Roller Plunger	1200 gf	SPDT	1.5 mm	0.06 in	Status Indicator	1.866 in	47.4 mm	IP67 - Dust Tight Waterproof	3 mm	0.118 in	125 V	0.008 in	0.2 mm	500000 Cycles	10000000 Cycles	On-Mom	Screw Terminal	500 gf	30 V	80 C	-10 °C
Omron Electronics Inc-EMC Div ZC-Q2255-ML VCT 3M	Roller Plunger	1200 gf	SPDT	1.5 mm	0.06 in		1.866 in	47.4 mm	IP67 - Dust Tight Waterproof	3 mm	0.118 in	125 V	0.008 in	0.2 mm	500000 Cycles	10000000 Cycles	On-Mom	Cable Leads	500 gf	30 V	80 C	-10 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Panel Mount
