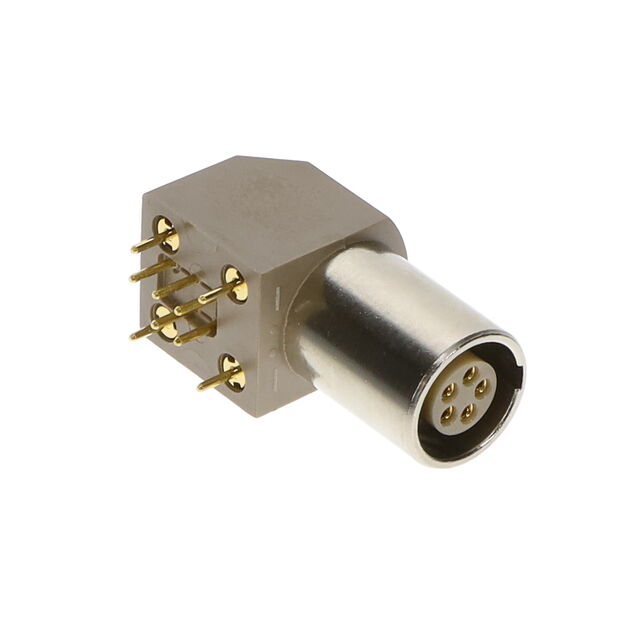

EPG.1B.305.HLN

Active

LEMO

CONN RCPT FMALE 5POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EPG.1B.305.HLN

Active

LEMO

CONN RCPT FMALE 5POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EPG.1B.305.HLN

Color	Brown, Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	4.5 A
Fastening Type	Push-Pull
Features	Ground
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass and Polyphenylene Sulfide (PPS)
Shell Size - Insert	305
Shielding	Shielded
Termination	Solder

EPG.1B Series

Part	Orientation	Primary Material	Connector Type	Fastening Type	Number of Positions	Current Rating (Amps)	Shell Material	Material Flammability Rating	Mounting Type	Termination	Shielding	Shell Finish	Shell Size - Insert	Color	Contact Material	Insert Material	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features
LEMO EPG.1B.310.HLNS	G	Metal	Receptacle Female Sockets	Push-Pull	10	1.5 A	Brass and Polyphenylene Sulfide (PPS)	UL94 V-0	Through Hole Right Angle	Solder	Shielded	Nickel	310	Brown Silver	Bronze	Polyetheretherketone (PEEK)	IP50	-55 °C	250 °C	Gold	59 Áin	1.5 Ám
LEMO EPG.1B.308.HLNS	G	Metal	Receptacle Female Sockets	Push-Pull	8	2 A	Brass and Polyphenylene Sulfide (PPS)	UL94 V-0	Through Hole Right Angle	Solder	Shielded	Nickel	308	Brown Silver	Bronze	Polyetheretherketone (PEEK)	IP50	-55 °C	250 °C	Gold	59 Áin	1.5 Ám
LEMO EPG.1B.305.HLN	G	Metal	Receptacle Female Sockets	Push-Pull		4.5 A	Brass and Polyphenylene Sulfide (PPS)	UL94 V-0	Through Hole Right Angle	Solder	Shielded	Nickel	305	Brown Silver	Bronze	Polyetheretherketone (PEEK)	IP50	-55 °C	250 °C	Gold	59 Áin	1.5 Ám	Ground
LEMO EPG.1B.302.HLN	G	Metal	Receptacle Female Sockets	Push-Pull	2	4.5 A	Brass and Polyphenylene Sulfide (PPS)	UL94 V-0	Through Hole Right Angle	Solder	Shielded	Nickel	302	Brown Silver	Bronze	Polyetheretherketone (PEEK)	IP50	-55 °C	250 °C	Gold	59 Áin	1.5 Ám	Ground
LEMO EPG.1B.304.HLN	G	Metal	Receptacle Female Sockets	Push-Pull	4	4.5 A	Brass and Polyphenylene Sulfide (PPS)	UL94 V-0	Through Hole Right Angle	Solder	Shielded	Nickel	304	Brown Silver	Bronze	Polyetheretherketone (PEEK)	IP50	-55 °C	250 °C	Gold	59 Áin	1.5 Ám	Ground

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 50.14
		10	$ 40.02

Description

General part information

EPG.1B Series

5 Position Circular Connector Receptacle, Female Sockets Solder
