JWS11RAA

Active

NKK Switches

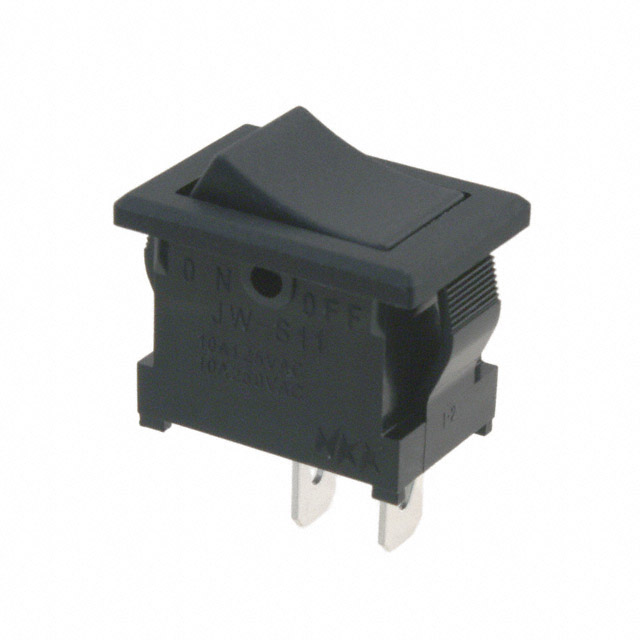

ROCKER SWITCH, NON ILLUMINATED, SPST, ON-NONE-OFF, BLACK, PANEL MOUNT, 10 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

JWS11RAA

Active

NKK Switches

ROCKER SWITCH, NON ILLUMINATED, SPST, ON-NONE-OFF, BLACK, PANEL MOUNT, 10 A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JWS11RAA

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Approval Agency	UL, VDE, CSA
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	6 A
Electrical Life	10000 Cycles
Ingress Protection	Dust Proof
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions	Rectangular
Panel Cutout Dimensions [x]	19.2 mm
Panel Cutout Dimensions [y]	12.9 mm
Switch Function	On-Off
Termination Style	Solder, Quick Connect
Termination Style	4.7 mm, 0.187 in
Voltage Rating - AC	125 V

JWS11R Series

Part	Switch Function	Actuator Marking	Actuator Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions	Panel Cutout Dimensions [x]	Ingress Protection	Mounting Type	Approval Agency	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Termination Style	Termination Style	Voltage Rating - AC	Mechanical Life	Current Rating (Amps)	Color - Actuator/Cap	Illumination Type, Color	Illumination Voltage (Nominal)
NKK Switches JWS11RBA	On-Off	No Marking	Concave (Curved)	12.9 mm	Rectangular	19.2 mm	Dust Proof	Panel Mount Snap-In	CSA UL VDE	SPST	70 °C	-25 °C	10000 Cycles	Quick Connect Solder	0.187 in 4.7 mm	125 V	30000 Steps	6 A	Ivory
NKK Switches JWS11RAAD	On-Off	No Marking	Concave (Curved) - Illuminated	12.9 mm	Rectangular	19.2 mm	Dust Proof	Panel Mount Snap-In	CSA UL VDE	SPST	50 °C	-25 °C	10000 Cycles	Quick Connect Solder	0.187 in 4.7 mm	125 V	30000 Steps	6 A	Black	Amber LED	2 VDC
NKK Switches JWS11RCAF	On-Off	No Marking	Concave (Curved) - Illuminated	12.9 mm	Rectangular	19.2 mm	Dust Proof	Panel Mount Snap-In	CSA UL VDE	SPST	50 °C	-25 °C	10000 Cycles	Quick Connect Solder	0.187 in 4.7 mm	125 V	30000 Steps	6 A	Red	Green LED	2.1 VDC
NKK Switches JWS11RAA	On-Off	No Marking	Concave (Curved)	12.9 mm	Rectangular	19.2 mm	Dust Proof	Panel Mount Snap-In	CSA UL VDE	SPST	70 °C	-25 °C	10000 Cycles	Quick Connect Solder	0.187 in 4.7 mm	125 V	30000 Steps	6 A	Black
NKK Switches JWS11RCAD	On-Off	No Marking	Concave (Curved) - Illuminated	12.9 mm	Rectangular	19.2 mm	Dust Proof	Panel Mount Snap-In	CSA UL VDE	SPST	50 °C	-25 °C	10000 Cycles	Quick Connect Solder	0.187 in 4.7 mm	125 V	30000 Steps	6 A	Red	Amber LED	2 VDC
NKK Switches JWS11RAAF	On-Off	No Marking	Concave (Curved) - Illuminated	12.9 mm	Rectangular	19.2 mm	Dust Proof	Panel Mount Snap-In	CSA UL VDE	SPST	50 °C	-25 °C	10000 Cycles	Quick Connect Solder	0.187 in 4.7 mm	125 V	30000 Steps	6 A	Black	Green LED	2.1 VDC
NKK Switches JWS11RAAC	On-Off	No Marking	Concave (Curved) - Illuminated	12.9 mm	Rectangular	19.2 mm	Dust Proof	Panel Mount Snap-In	CSA UL VDE	SPST	50 °C	-25 °C	10000 Cycles	Quick Connect Solder	0.187 in 4.7 mm	125 V	30000 Steps	6 A	Black	LED Red	1.8 VDC
