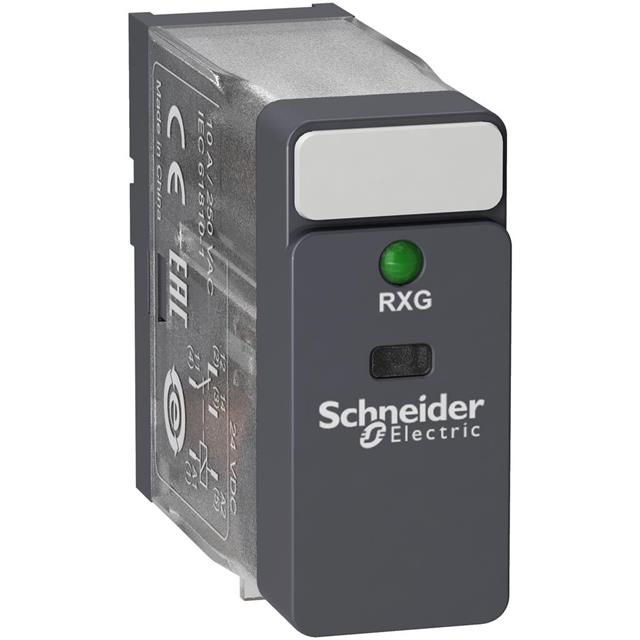

RXG13JD
ActiveSQUARE D BY SCHNEIDER ELECTRIC
POWER RELAY, SPDT, 12 VDC, 10 A, ZELIO RXG SERIES, SOCKET
Deep-Dive with AI
Search across all available documentation for this part.
RXG13JD
ActiveSQUARE D BY SCHNEIDER ELECTRIC
POWER RELAY, SPDT, 12 VDC, 10 A, ZELIO RXG SERIES, SOCKET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RXG13JD |
|---|---|
| Approval Agency | UL, CE, DNV-GL, EAC, CSA |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide Indium Oxide (AgSnOInO) |
| Contact Rating (Current) | 10 A |
| Features | Lighted Indicator |
| Load - Max Switching | 2500 VA, 300 W |
| Mounting Type | Socketable |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage [Max] | 30 VDC, 250 VAC |
| Termination Style | Plug In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RXG13 Series
General Purpose Relay SPDT (1 Form C) 12VDC Coil Socketable
