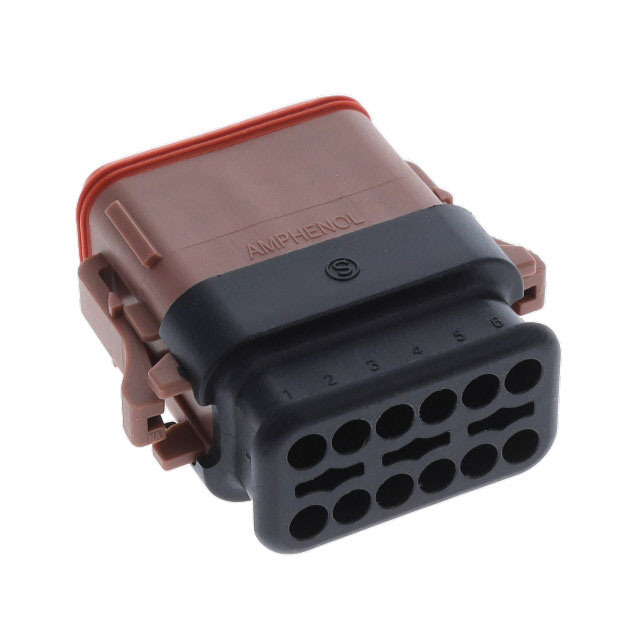

AT06-12SD-SR2BR

Active

Amphenol Sine Systems Corp

CONN PLUG HSG 12POS 14-20AWG

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN PLUG HSG 12POS 14-20AWG

Technical Specifications

Parameters and characteristics for this part

Specification	AT06-12SD-SR2BR

Color	Brown
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Sealed, Strain Relief, Cap (Cover)
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

Part	Insulation Material	Number of Rows	Number of Positions	Contact Type	Connector Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Fastening Type	Mounting Type	Note	Features
Amphenol Sine Systems Corp AT06-12SD-SS01	Thermoplastic	2	12	Female Socket	Plug	Brown	-55 °C	125 °C	Crimp	Latch Lock	Free Hanging (In-Line)	Contacts Not Included
Amphenol Sine Systems Corp AT06-12SD-EC01	Thermoplastic	2	12	Female Socket	Plug	Brown	-55 °C	125 °C	Crimp	Latch Lock	Free Hanging (In-Line)	Contacts Not Included	Cap (Cover)
Amphenol Sine Systems Corp AT06-12SD-SR2BR	Thermoplastic	2	12	Female Socket	Plug	Brown	-55 °C	125 °C	Crimp	Latch Lock	Free Hanging (In-Line)	Contacts Not Included	Cap (Cover) Sealed Strain Relief
Amphenol Sine Systems Corp AT06-12SD-OMRDBRN	Polyamide (PA66) Nylon 6/6 Glass Filled	2	12	Female Socket	Plug	Brown	-55 °C	125 °C	Crimp	Latch Lock	Free Hanging (In-Line)		Sealed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Rectangular Connectors - Housings Plug Brown
