2N7002KTB_R1_00001

Active

Panjit International Inc.

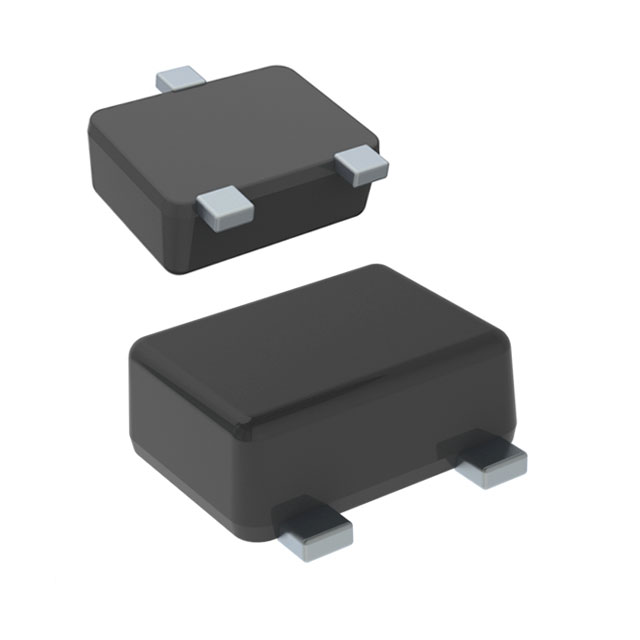

SOT-523, MOSFET

Search across all available documentation for this part.

Active

Panjit International Inc.

SOT-523, MOSFET

Technical Specifications

Parameters and characteristics for this part

Specification	2N7002KTB_R1_00001

Current - Continuous Drain (Id) @ 25°C	115 mA
Drain to Source Voltage (Vdss)	60 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	N-Channel
Input Capacitance (Ciss) (Max) @ Vds	35 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SC-89, SOT-490
Power Dissipation (Max)	200 mW
Rds On (Max) @ Id, Vgs	3 Ohm
Supplier Device Package	SOT-523 Flat Leads
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	2.5 V

Part	Drive Voltage (Max Rds On, Min Rds On)	FET Type	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Rds On (Max) @ Id, Vgs	Package / Case	Qualification	Vgs(th) (Max) @ Id	Gate Charge (Qg) (Max) @ Vgs	Technology	Vgs (Max)	Mounting Type	Supplier Device Package	Power Dissipation (Max) [Max]	Input Capacitance (Ciss) (Max) @ Vds	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Power Dissipation (Max)
Panjit International Inc. 2N7002KW-AU_R1_000A1	4.5 V 10 V	N-Channel	250 mA	60 V	3 Ohm	SC-70 SOT-323	AEC-Q101	2.5 V	0.8 nC	MOSFET (Metal Oxide)	20 V	Surface Mount	SOT-323	350 mW	24 pF	Automotive	-55 °C	150 °C
Panjit International Inc. 2N7002KW_R1_00001	4.5 V 10 V	N-Channel	115 mA	60 V	3 Ohm	SC-70 SOT-323		2.5 V		MOSFET (Metal Oxide)	20 V	Surface Mount	SOT-323		35 pF		-55 °C	150 °C	200 mW
Panjit International Inc. 2N7002K_R1_00001	4.5 V 10 V	N-Channel	300 mA	60 V	3 Ohm	SC-59 SOT-23-3 TO-236-3		2.5 V	0.8 nC	MOSFET (Metal Oxide)	20 V	Surface Mount	SOT-23	350 mW	35 pF		-55 °C	150 °C
Panjit International Inc. 2N7002KTB_R1_00001	4.5 V 10 V	N-Channel	115 mA	60 V	3 Ohm	SC-89 SOT-490		2.5 V		MOSFET (Metal Oxide)	20 V	Surface Mount	SOT-523 Flat Leads		35 pF		-55 °C	150 °C	200 mW
Panjit International Inc. 2N7002K-AU_R1_000A2	4.5 V 10 V	N-Channel	300 mA	60 V	3 Ohm	SC-59 SOT-23-3 TO-236-3	AEC-Q101	2.5 V	0.8 nC	MOSFET (Metal Oxide)	20 V	Surface Mount	SOT-23	500 mW	35 pF	Automotive	-55 °C	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 60 V 115mA (Ta) 200mW (Ta) Surface Mount SOT-523 Flat Leads
