1321

Active

Anderson Power Products, Inc.

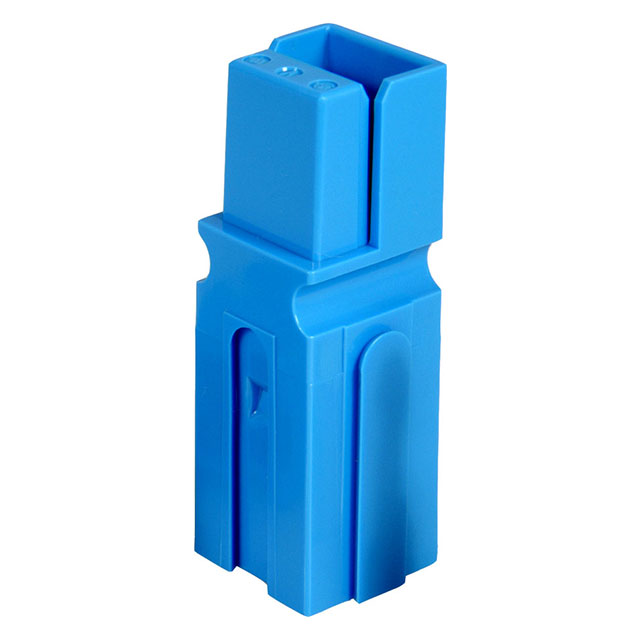

CONNECTOR: DC SUPPLY; PLUG; HERMAPHRODITE; POWERPOLE® PP120; BLUE

Search across all available documentation for this part.

Active

Anderson Power Products, Inc.

CONNECTOR: DC SUPPLY; PLUG; HERMAPHRODITE; POWERPOLE® PP120; BLUE

Technical Specifications

Parameters and characteristics for this part

Part	Contact Type	Mounting Type	Fastening Type	Voltage Rating	Current Rating (Amps)	Features	Number of Rows	Color	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Note	Number of Positions	Material - Insulation	Material - Insulation
Anderson Power Products, Inc. 1321	Non-Gendered	Free Hanging (In-Line)	Spring Retention	600 V	120 A	Stackable	1	Blue	Non-Gendered	-20 C	105 ░C	Crimp	Contacts Not Included	1	Polycarbonate	PC
Anderson Power Products, Inc. 1321G2	Non-Gendered	Free Hanging (In-Line)	Spring Retention	600 V	120 A	Stackable	1	White	Non-Gendered	-20 C	105 ░C	Crimp	Contacts Not Included	1	Polycarbonate	PC
Anderson Power Products, Inc. 1321G4	Non-Gendered	Free Hanging (In-Line)	Spring Retention	600 V	120 A	Stackable	1	Green	Non-Gendered	-20 C	105 ░C	Crimp	Contacts Not Included	1	Polycarbonate	PC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Position Blade Type Power Housing Connector Non-Gendered Blue
