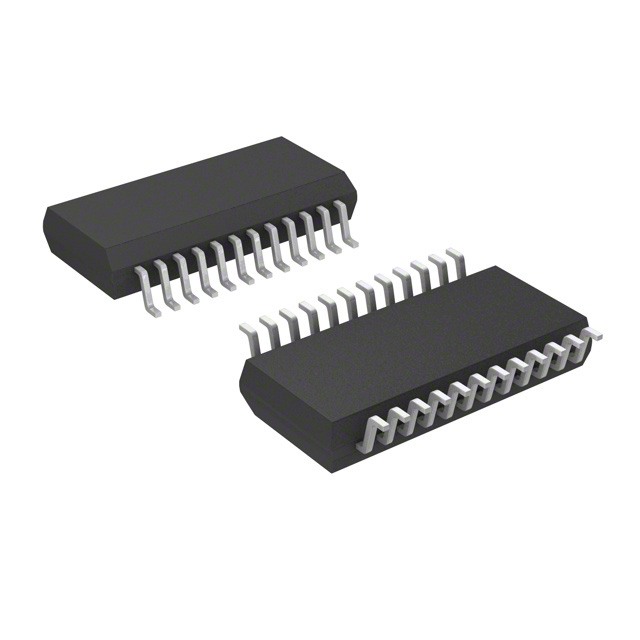

ACS709LLFTR-35BB-T
Allegro MicroSystems
OPEN LOOP CURRENT SENSOR AC/DC CURRENT 3.3V/5V 24-PIN QSOP T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACS709LLFTR-35BB-T
Allegro MicroSystems
OPEN LOOP CURRENT SENSOR AC/DC CURRENT 3.3V/5V 24-PIN QSOP T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ACS709LLFTR-35BB-T |
|---|---|
| Accuracy | 3 % |
| Current - Sensing | 37.5 A |
| Current - Supply (Max) [Max] | 14.5 mA |
| For Measuring | AC/DC |
| Linearity | 0.25 % |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Output | Voltage, Ratiometric |
| Package / Case | 24-SSOP |
| Package / Case [custom] | 0.154 ", 3.9 mm |
| Polarization | Bidirectional |
| Response Time | 4 µs |
| Sensitivity | 28 mV/A |
| Sensor Type | Hall Effect, Open Loop |
| Supplier Device Package | 24-QSOP |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.84 | |
| 5 | $ 2.53 | |||
| 10 | $ 2.42 | |||
| 25 | $ 2.28 | |||
| 50 | $ 2.19 | |||
| 100 | $ 2.10 | |||
| 500 | $ 1.93 | |||
| 1000 | $ 1.87 | |||
| Digi-Reel® | 1 | $ 2.84 | ||
| 5 | $ 2.53 | |||
| 10 | $ 2.42 | |||
| 25 | $ 2.28 | |||
| 50 | $ 2.19 | |||
| 100 | $ 2.10 | |||
| 500 | $ 1.93 | |||
| 1000 | $ 1.87 | |||
| Tape & Reel (TR) | 2500 | $ 1.52 | ||
| 5000 | $ 1.51 | |||
Description
General part information
ACS709 Series
Current Sensor 37.5A 1 Channel Hall Effect, Open Loop Bidirectional 24-SSOP (0.154", 3.90mm Width)
