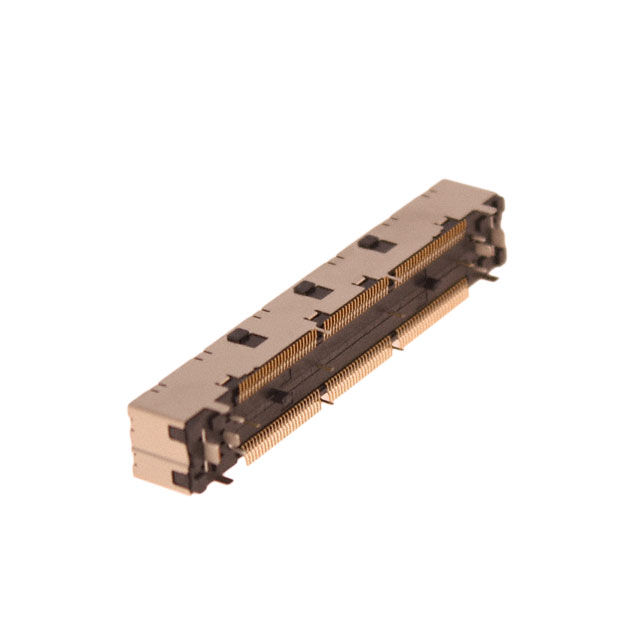

WD2F144WB4R400

Active

JAE Electronics

CONN RCPT 144POS SMD GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT 144POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	WD2F144WB4R400

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	0.3 Ám
Contact Finish Thickness	11.8 Áin
Features	Board Guide
Height Above Board [z]	0.303 in
Height Above Board [z]	7.7 mm
Mated Stacking Heights	14 mm
Mounting Type	Surface Mount
Number of Positions	148
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Pitch [x]	Pitch [x]	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Finish	Number of Rows	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Number of Positions	Features	Height Above Board	Height Above Board	Mated Stacking Heights [z]
JAE Electronics WD2F144WB3R300	0.5 mm	0.02 in	Center Strip Contacts Receptacle	0.3 Ám	11.8 Áin	Surface Mount	Gold	2	16.7 mm	0.409 in	10.39 mm	148	Board Guide
JAE Electronics WD2F144WB2R250	0.5 mm	0.02 in	Center Strip Contacts Receptacle	0.3 Ám	11.8 Áin	Surface Mount	Gold	2				148	Board Guide	0.547 in	13.89 mm	20.2 mm
JAE Electronics WD2F144WB1R300	0.5 mm	0.02 in	Center Strip Contacts Receptacle	0.3 Ám	11.8 Áin	Surface Mount	Gold	2	17.9 mm			148	Board Guide	0.457 in	11.6 mm
JAE Electronics WD2F144WB4R400	0.5 mm	0.02 in	Center Strip Contacts Receptacle	0.3 Ám	11.8 Áin	Surface Mount	Gold	2	14 mm	0.303 in	7.7 mm	148	Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

148 (144 + 4 Power) Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
